MMD-04BZ-R22M-V1-RU
ActiveMag Layers
FIXED IND 220NH 13A 8 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MMD-04BZ-R22M-V1-RU
ActiveMag Layers
FIXED IND 220NH 13A 8 MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MMD-04BZ-R22M-V1-RU |
|---|---|
| Current - Saturation (Isat) | 24 A |
| Current Rating (Amps) | 13 A |
| DC Resistance (DCR) [Max] | 8 mOhm |
| Height - Seated (Max) [Max] [z] | 2 mm |
| Height - Seated (Max) [Max] [z] | 0.079 in |
| Inductance | 220 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 0.175 in, 4.45 mm |
| Size / Dimension [y] | 0.16 in, 4.06 mm |
| Tolerance | 20 % |
| Type | Molded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information

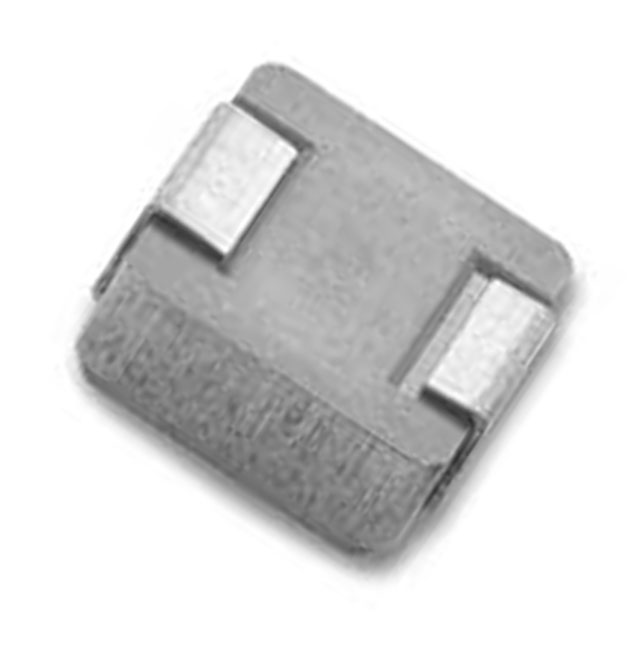

MMD-04BZ-R22M-V1-RU
220 nH Shielded Molded Inductor 13 A 8mOhm Max Nonstandard
