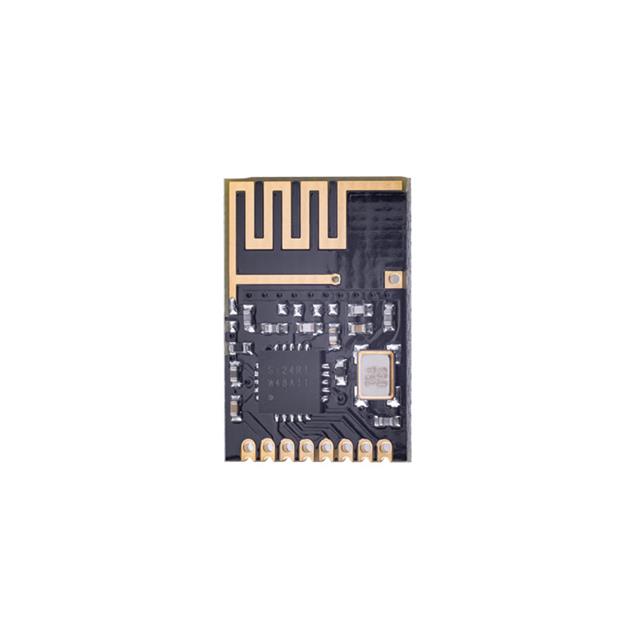

NF-03
ActiveAi-Thinker
RF TXRX MOD ISM>1GHZ PCB TH SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NF-03
ActiveAi-Thinker
RF TXRX MOD ISM>1GHZ PCB TH SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NF-03 |
|---|---|
| Antenna Type | PCB Trace |
| Current - Receiving | 15 mA |
| Current - Transmitting | 25 mA |
| Data Rate | 2 Mbps |
| Frequency [Max] | 2.525 GHz |
| Frequency [Min] | 2.4 GHz |
| Modulation | GFSK, FSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 8-SMD Module |
| Power - Output | 7 dBm |
| RF Family/Standard | General ISM > 1GHz |
| Serial Interfaces | SPI |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.60 | |
| 10 | $ 1.38 | |||
| 25 | $ 1.30 | |||
| Digi-Reel® | 1 | $ 1.60 | ||
| 10 | $ 1.38 | |||
| 25 | $ 1.30 | |||
| Tape & Reel (TR) | 50 | $ 1.48 | ||
| 100 | $ 1.33 | |||
| 250 | $ 1.18 | |||
| 500 | $ 1.03 | |||
| 1250 | $ 0.86 | |||
| 2500 | $ 0.80 | |||
| 5000 | $ 0.77 | |||
Description
General part information
NF-03
General ISM > 1GHz Transceiver Module 2.4GHz ~ 2.525GHz PCB Trace Surface Mount
Documents
Technical documentation and resources
