1451610
ActiveMARATHON SPECIAL PRODUCTS

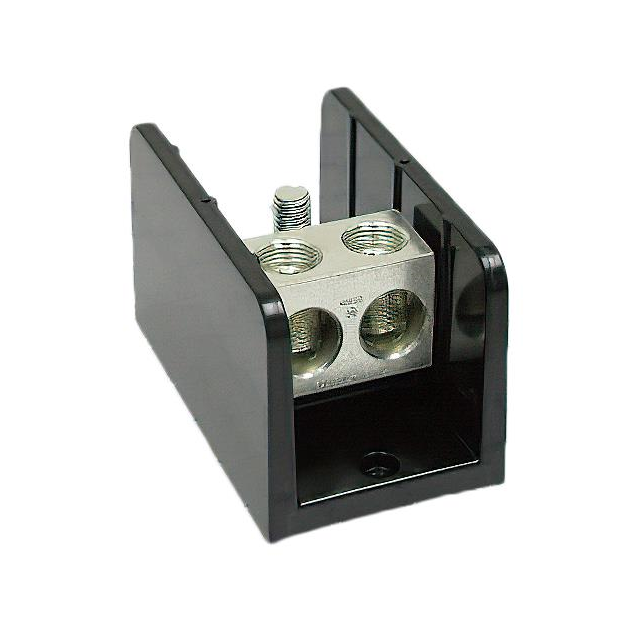

PANEL MOUNT BARRIER TERMINAL BLOCK, 760 A, 600 V, 1 POLE, 2, SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
1451610
ActiveMARATHON SPECIAL PRODUCTS
PANEL MOUNT BARRIER TERMINAL BLOCK, 760 A, 600 V, 1 POLE, 2, SCREW
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | 1451610 |
|---|---|
| Current Rating (Amps) | 760 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 2 |
| Line Side Wire/Stud Size | #4 |
| Line Side Wire/Stud Size | 500 kcmil |
| Load Side Connection Type [custom] | Stud |
| Load Side Connections Per Pole | 1 |
| Load Side Wire/Stud Size [custom] | 0.9375 |
| Load Side Wire/Stud Size [custom] | 13 |
| Load Side Wire/Stud Size [custom] | 0.5 |
| Number of Poles | 1 |
| Type | Power Stud Terminal Block |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
1451610
1 Pole Power Stud Terminal Block 760 A 600 V
