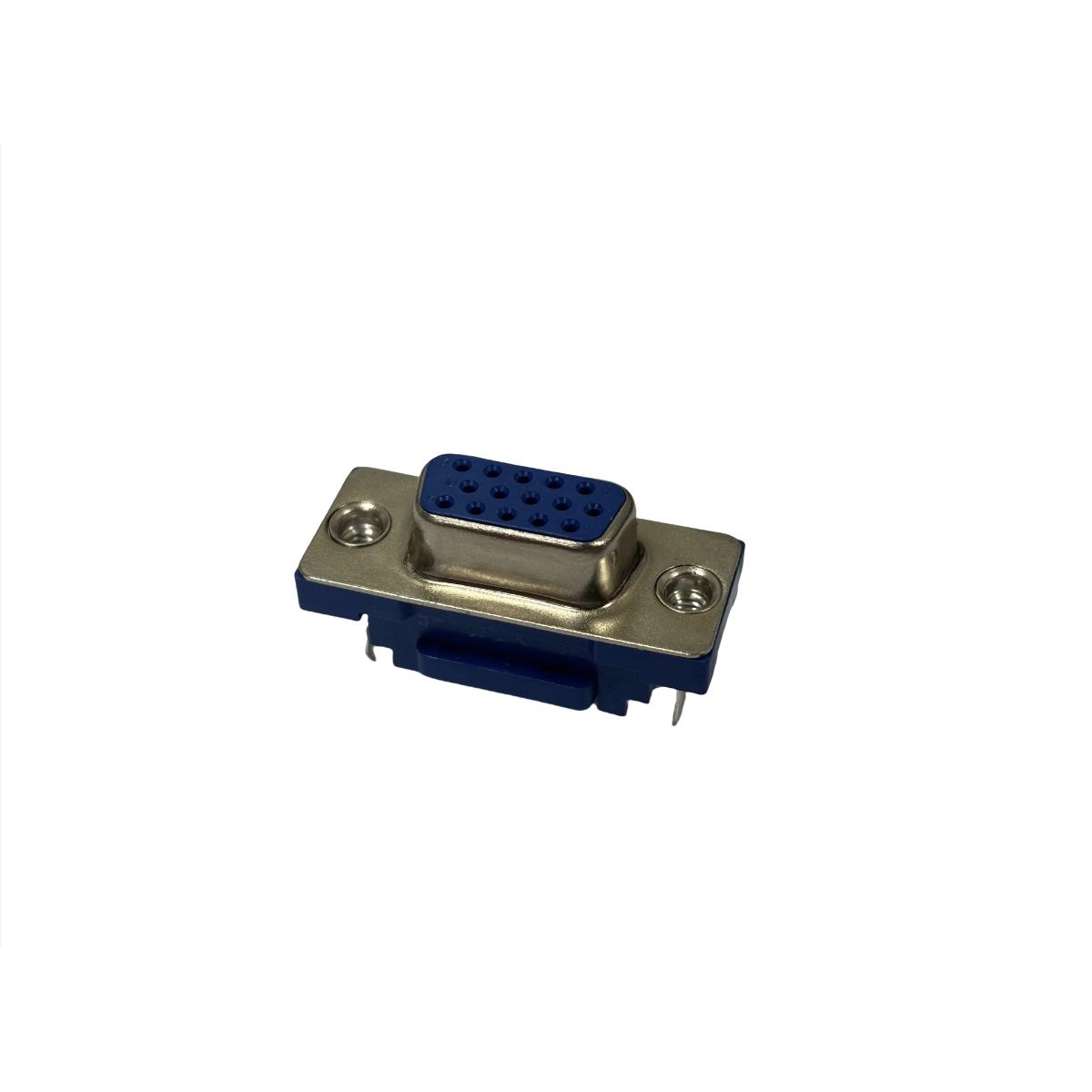

84615L21300
ActiveDLK Electronics
D-SUB VT H=10.5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
84615L21300
ActiveDLK Electronics
D-SUB VT H=10.5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 84615L21300 |
|---|---|
| Color | Blue |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.025 µm |
| Contact Finish Thickness | 1 µin |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Primary Material | Metal |
| Shell Material, Finish | Nickel Plated, Metal |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | High Density |
| Termination | Solder |
| Voltage Rating | 36 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 10 | $ 0.98 | |
| 20 | $ 0.94 | |||
| 50 | $ 0.91 | |||
| 100 | $ 0.87 | |||
| 200 | $ 0.81 | |||
Description
General part information
84615L21300
15 Position D-Sub, High Density Receptacle, Female Sockets Connector
