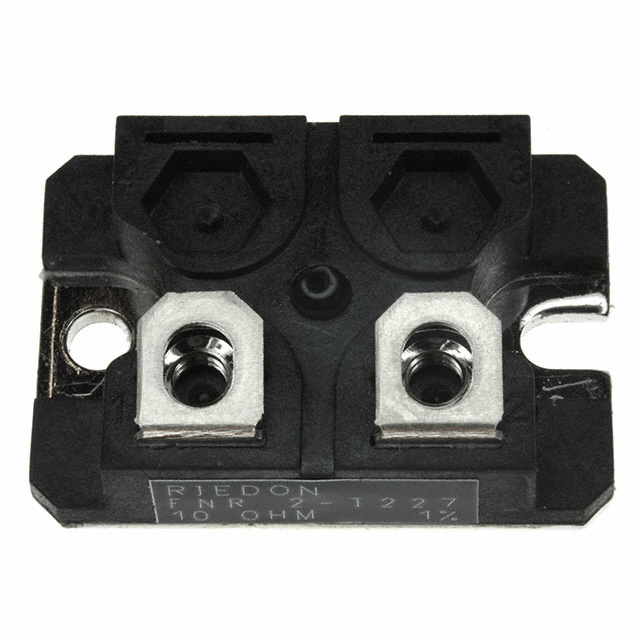

FNR2E-10RF1
ActiveRiedon products by Bourns
RES CHAS MNT 10 OHM 1% 80W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FNR2E-10RF1
ActiveRiedon products by Bourns
RES CHAS MNT 10 OHM 1% 80W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FNR2E-10RF1 |
|---|---|
| Coating, Housing Type | Epoxy Coated |
| Height - Seated (Max) [Max] [z] | 12.1 mm |
| Height - Seated (Max) [Max] [z] | 0.476 " |
| Lead Style | M4 Threaded |
| Mounting Feature | Flanges |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | SOT-227-2 |
| Power (Watts) | 80 W |
| Resistance | 10 Ohms |
| Size / Dimension [x] | 38 mm |
| Size / Dimension [x] | 1.496 " |
| Size / Dimension [y] | 1.024 " |
| Size / Dimension [y] | 26 mm |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 39.85 | |
Description
General part information
FNR2E-10RF1
10 Ohms ±1% 80W Metal Foil Chassis Mount Resistor
