32206109
UnknownYageo Nexensos

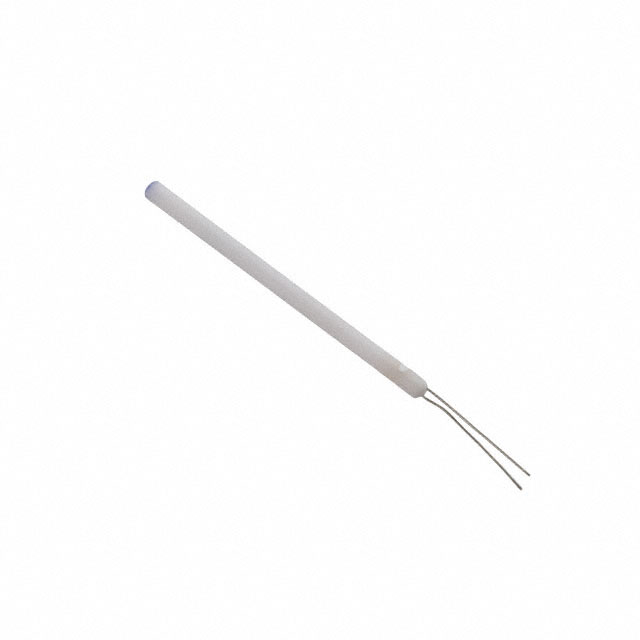

SENSOR RTD 100OHM 0.15% PROBE
Deep-Dive with AI
Search across all available documentation for this part.
32206109
UnknownYageo Nexensos
SENSOR RTD 100OHM 0.15% PROBE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 32206109 |
|---|---|
| Accuracy | 0.15 °C |
| Current | 1 mA |
| Mounting Type | Free Hanging |
| Operating Temperature [Max] | 600 °C |
| Operating Temperature [Min] | -196 °C |
| Package / Case | Cylindrical Probe, Ceramic |
| Resistance @ 0°C | 100 Ohms |
| Resistance Tolerance | 0.06 % |
| RTD Material | Platinum (Pt) |
| Temperature Coefficient | 3850 ppm/°C |
| Termination | PC Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 28.40 | |
Description
General part information
32206109
100 Ohms RTD Platinum (Pt) ±0.15% 3850ppm/°C Cylindrical Probe, Ceramic
Documents
Technical documentation and resources
No documents available
