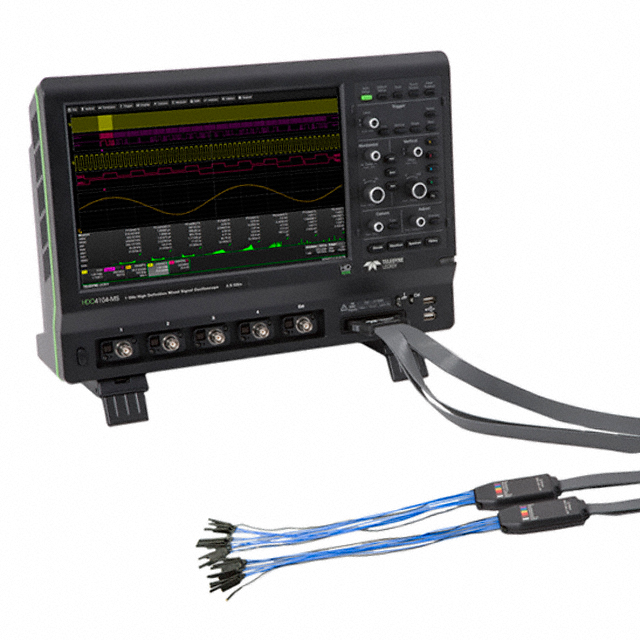

HDO4034-MS
ObsoleteTeledyne LeCroy
HD O-SCOPE 350MHZ 4CH 12.5MPTS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HDO4034-MS
ObsoleteTeledyne LeCroy
HD O-SCOPE 350MHZ 4CH 12.5MPTS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HDO4034-MS |
|---|---|
| Bandwidth | 350 MHz |
| Channels [custom] | 16 |
| Channels [custom] | 4 |
| Display Type | LCD - Color (Touch) |
| Function | Record, Trend, Save |
| Input Impedance | 1 M, 15 pF |
| Interface | USB, Ethernet |
| Memory Size | 25 Mpts |
| Probe Type | Passive 10:1 (4) |
| Rise Time (Typ) | 1 ns |
| Sampling Rate (Per Second) | 2.5 G |
| Type | Bench, Digital |
| Voltage - Input (Max) [Max] | 400 V |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
HDO4034-MS
350 MHz Bench, Digital Oscilloscopes Ethernet, USB Interface LCD - Color (Touch) Display 4 Analog, 16 Digital Channel 400V Record, Save, Trend
