RCD30-48D24W-A
ActiveP-DUKE Technology
ISOLATED / 30W/ VOUT:24
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RCD30-48D24W-A
ActiveP-DUKE Technology
ISOLATED / 30W/ VOUT:24
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RCD30-48D24W-A |
|---|---|
| Applications | Railway, ITE (Commercial) |
| Approval Agency | CE, cURus, UKCA, CB |
| Control Features | Active High, Enable |
| Current - Output (Max) | 625 mA |
| Current - Output (Max) | 625 mA |
| Efficiency | 92 % |
| Features | Remote On/Off, Adjustable Output |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 30 W |
| Size / Dimension [x] | 1 in |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.39 in |
| Size / Dimension [z] | 9.9 mm |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 24 V |
| Voltage - Output 2 | -24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 73.67 | |
| 10 | $ 64.75 | |||
| 25 | $ 61.51 | |||
| 50 | $ 59.16 | |||
| 100 | $ 56.91 | |||
Description
General part information
RCD30-48D24W-A

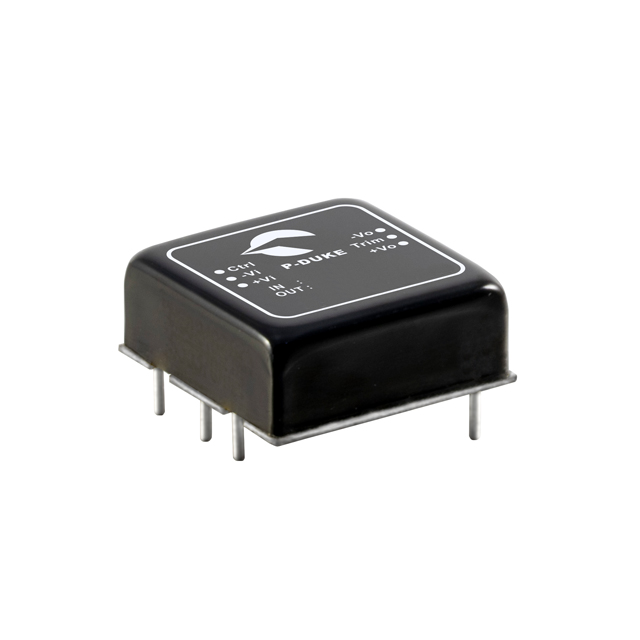

Isolated Module DC DC Converter 2 Output 24V -24V 625mA, 625mA 18V - 75V Input
