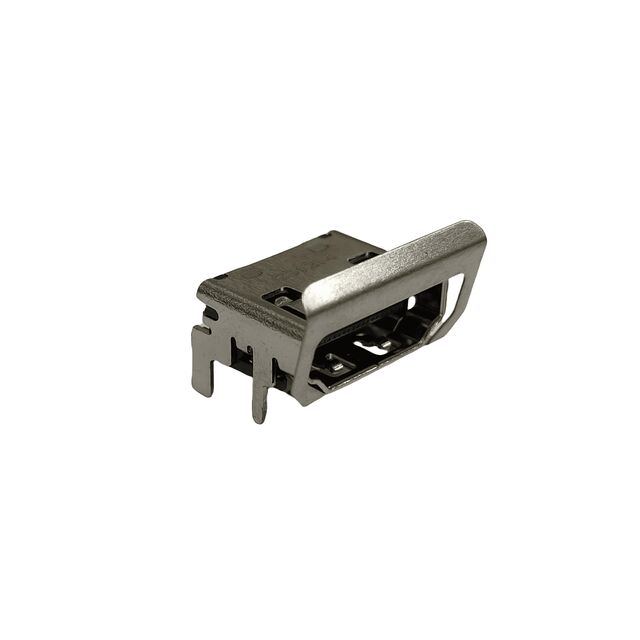

54119B041H1
ActiveDLK Electronics
HDMI AF RA SMT TYPE H=6.2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
54119B041H1
ActiveDLK Electronics
HDMI AF RA SMT TYPE H=6.2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 54119B041H1 |
|---|---|
| Connector Type | HDMI |
| Contact Finish | Gold |
| Current Rating (Amps) | 0.5 A |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts [custom] | 19 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell/Shielding Material | Copper Alloy |
| Shielding | Shielded |
| Specifications | HDMI 1.4 |
| Termination | PC Board, Solder |
| Voltage - Rated | 40 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 10 | $ 0.82 | |
| 20 | $ 0.79 | |||
| 50 | $ 0.77 | |||
| 100 | $ 0.74 | |||
| 200 | $ 0.68 | |||
Description
General part information
54119B041H1
HDMI HDMI 1.4 Receptacle Connector 19 Position Surface Mount, Right Angle; Through Hole
