SZA-3044Z
UnknownRFMD
IC AMP 802.16 2.7-3.8GHZ 20QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SZA-3044Z
UnknownRFMD
IC AMP 802.16 2.7-3.8GHZ 20QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SZA-3044Z |
|---|---|
| Current - Supply [Max] | 240 mA |
| Current - Supply [Min] | 170 mA |
| Frequency [Max] | 3.8 GHz |
| Frequency [Min] | 2.7 GHz |
| Gain [Max] | 26 dB |
| Gain [Min] | 22 dB |
| Mounting Type | Surface Mount |
| Noise Figure | 5 dB |
| P1dB [Max] | 30 dBm |
| P1dB [Min] | 28.5 dBm |

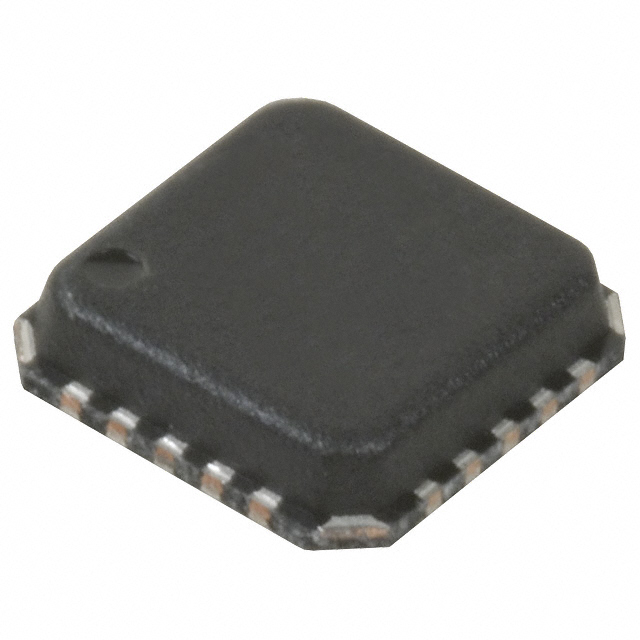

| Package / Case | 20-VFQFN Exposed Pad |
| RF Type | WLL, 802.16/WiMax |
| Supplier Device Package | 20-QFN (4x4) |
| Test Frequency | 3.6 GHz |
| Voltage - Supply [Max] | 6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.31 | |
| 10 | $ 7.62 | |||
| 25 | $ 6.93 | |||
Description
General part information
SZA-3044Z
RF Amplifier IC 802.16/WiMax, WLL 2.7GHz ~ 3.8GHz 20-QFN (4x4)
