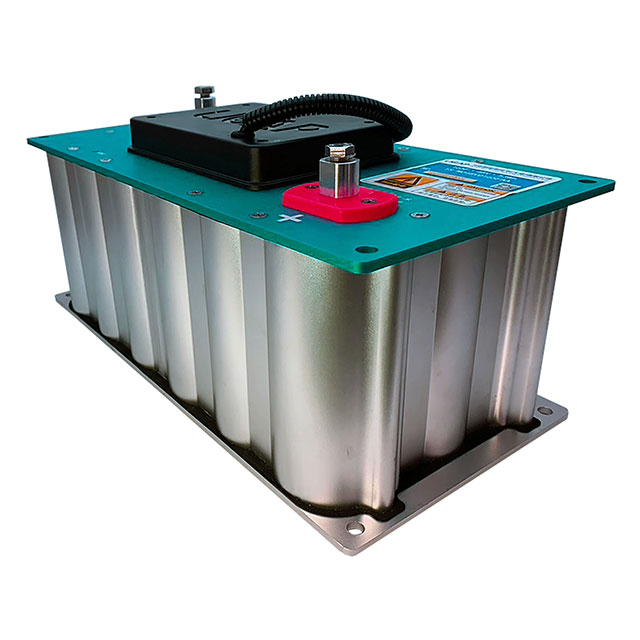

SM0165-048-ATH
ActiveLICAP Technologies, Inc.
CAPACITOR 165F 0%/20% 48V CHAS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SM0165-048-ATH
ActiveLICAP Technologies, Inc.
CAPACITOR 165F 0%/20% 48V CHAS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SM0165-048-ATH |
|---|---|
| Capacitance | 165 F |
| ESR (Equivalent Series Resistance) | 6 mOhms |
| Height - Seated (Max) [Max] [z] | 180 mm |
| Height - Seated (Max) [Max] [z] | 7.087 in |
| Lifetime @ Temp. | 1500 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Size / Dimension [x] | 418 mm |
| Size / Dimension [x] | 16.457 in |
| Size / Dimension [y] | 198 mm |
| Size / Dimension [y] | 7.795 in |
| Termination | Screw Terminals |
| Tolerance [Max] | 20 % |
| Tolerance [Min] | 0 % |
| Voltage - Rated | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1113.09 | |
Description
General part information
SM0165-048-ATH
165 F (EDLC) Supercapacitor 48 V Module 6mOhm 1500 Hrs @ 65°C
Documents
Technical documentation and resources
