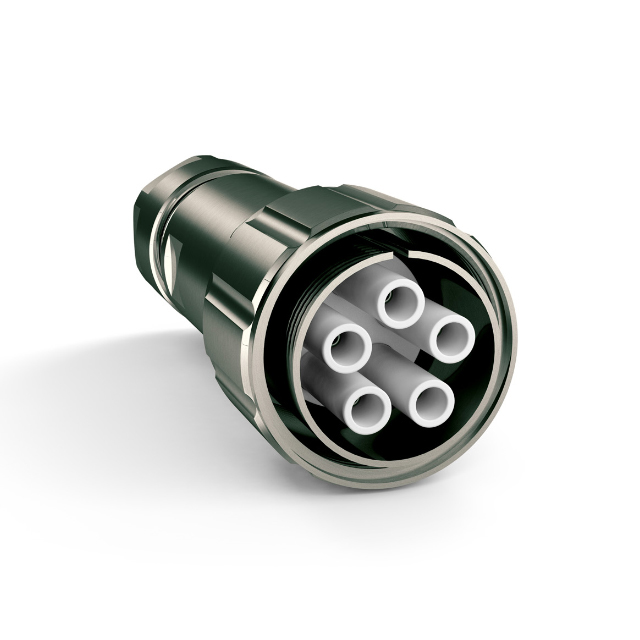

5005040C
ActiveGES High Voltage
KB-MC507 9.5-11 AWG 14 AG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5005040C
ActiveGES High Voltage
KB-MC507 9.5-11 AWG 14 AG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5005040C |
|---|---|
| Cable Opening [custom] | 0.157 in |
| Cable Opening [custom] | 4 mm |
| Color | Silver |
| Connector Type | Receptacle, Female Pins |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 13 A |
| Features | High Voltage Connector, Strain Relief |
| Ingress Protection | IP62 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shielding | Shielded |
| Termination | Solder, Crimp |
| Voltage Rating | 10000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 205.00 | |
| 10 | $ 195.00 | |||
| 25 | $ 190.00 | |||
| 50 | $ 179.00 | |||
Description
General part information
5005040C
5 Position Circular Connector Receptacle, Female Pins Crimp, Solder
