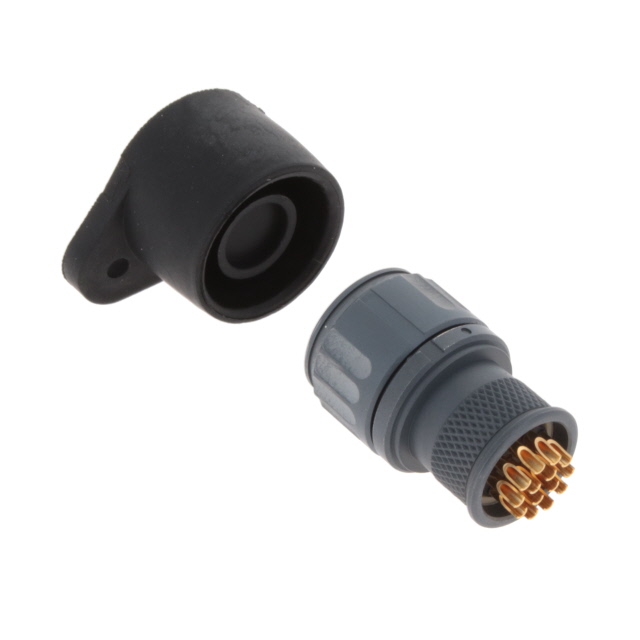

SCE2-B-L1K07-14PN
ActiveAmphenol
CONN RCPT MALE 14P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SCE2-B-L1K07-14PN
ActiveAmphenol
CONN RCPT MALE 14P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SCE2-B-L1K07-14PN |
|---|---|
| Backshell Material, Plating | Brass, Black Silver |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1 µm |
| Contact Finish Thickness - Mating | 39.4 µin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 3 A, 1.5 A, 7.5 A |
| Fastening Type | Push-Pull |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 14 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Black |
| Shell Material | Brass |
| Shell Size - Insert [Max] | 14 |
| Shell Size - Insert [Min] | 7 |
| Shielding | Unshielded |
| Voltage Rating | 400 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 114.54 | |
| 10 | $ 105.11 | |||
| 25 | $ 101.07 | |||
| 50 | $ 97.70 | |||
| 100 | $ 92.31 | |||
Description
General part information
SCE2-B-L1K07-14PN
14 Position Circular Connector Receptacle, Male Pins Solder Cup
