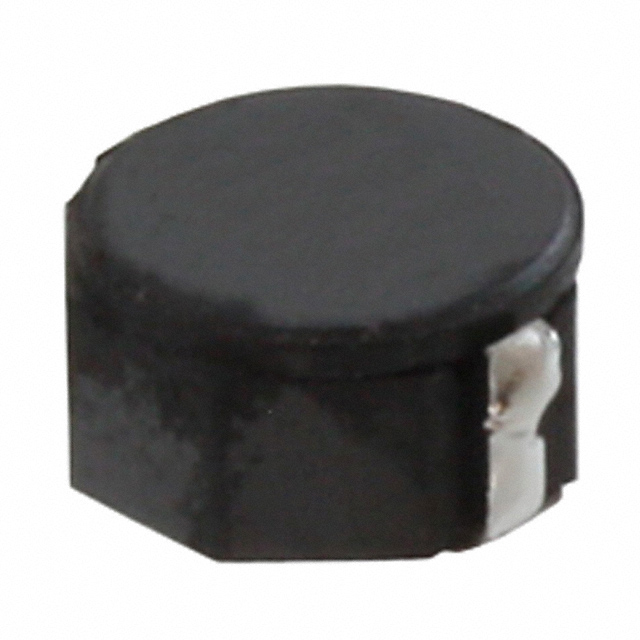

CDRH8D43NP-150NC
ActiveSumida America Components Inc.
FIXED IND 15UH 2.3A 53 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CDRH8D43NP-150NC
ActiveSumida America Components Inc.
FIXED IND 15UH 2.3A 53 MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CDRH8D43NP-150NC |
|---|---|
| Current - Saturation (Isat) | 2.9 A |
| DC Resistance (DCR) [Max] | 53 mOhm |
| Height - Seated (Max) | 4.5 mm |
| Height - Seated (Max) [Max] | 0.177 " |
| Inductance | 15 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 0.315 " |
| Size / Dimension [x] | 8 mm |
| Size / Dimension [y] | 0.315 in |
| Size / Dimension [y] | 8 mm |
| Tolerance | 30 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.09 | |
| 10 | $ 0.92 | |||
| 25 | $ 0.84 | |||
| 50 | $ 0.79 | |||
| 100 | $ 0.65 | |||
| 250 | $ 0.60 | |||
| Digi-Reel® | 1 | $ 1.09 | ||
| 10 | $ 0.92 | |||
| 25 | $ 0.84 | |||
| 50 | $ 0.79 | |||
| 100 | $ 0.65 | |||
| 250 | $ 0.60 | |||
| Tape & Reel (TR) | 500 | $ 0.57 | ||
| 1000 | $ 0.52 | |||
| 2500 | $ 0.50 | |||
| 5000 | $ 0.48 | |||
| 12500 | $ 0.47 | |||
Description
General part information
CDRH8D43NP-150NC
15 µH Shielded Inductor 2.3 A 53mOhm Max Nonstandard
