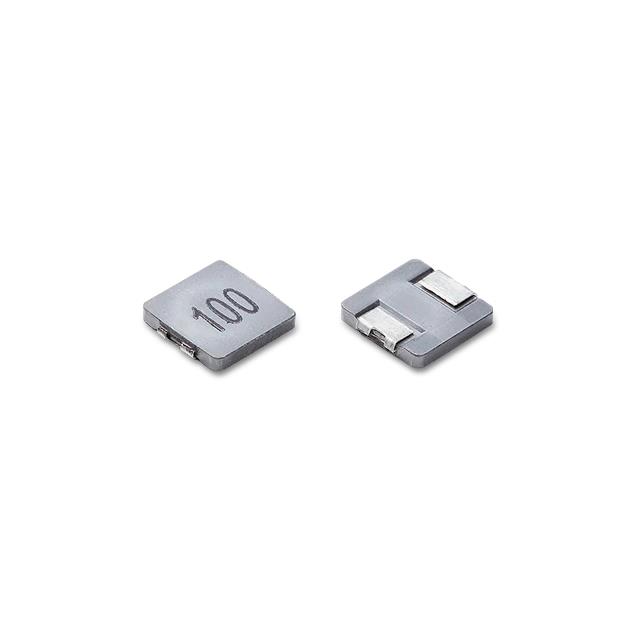

AMPI0410ECH100MT
ActiveArlitech Electronic Corp.
SMD POWER INDUCTORS 0410 10UH 20
Deep-Dive with AI
Search across all available documentation for this part.
AMPI0410ECH100MT
ActiveArlitech Electronic Corp.
SMD POWER INDUCTORS 0410 10UH 20
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AMPI0410ECH100MT |
|---|---|
| Current - Saturation (Isat) | 1.6 A |
| Current Rating (Amps) | 1.4 A |
| DC Resistance (DCR) | 285 mOhm |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Inductance | 10 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Iron Alloy |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 1616 (4040 Metric) |
| Shielding | Shielded |
| Size / Dimension [x] | 4 mm |
| Size / Dimension [x] | 0.157 " |
| Size / Dimension [y] | 0.157 in |
| Size / Dimension [y] | 4 mm |
| Supplier Device Package | 1616 |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.36 | |
| 10 | $ 0.29 | |||
| 25 | $ 0.27 | |||
| 50 | $ 0.25 | |||
| 100 | $ 0.22 | |||
| 250 | $ 0.21 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.15 | |||
| Digi-Reel® | 1 | $ 0.34 | ||
| 10 | $ 0.27 | |||
| 25 | $ 0.24 | |||
| 50 | $ 0.22 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.19 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| Tape & Reel (TR) | 3000 | $ 0.14 | ||
| 6000 | $ 0.13 | |||
| 9000 | $ 0.13 | |||
| 15000 | $ 0.12 | |||
| 21000 | $ 0.11 | |||
| 30000 | $ 0.11 | |||
Description
General part information
AMPI0410ECH100MT
10 µH Shielded Inductor 1.4 A 285mOhm 1616 (4040 Metric)
Documents
Technical documentation and resources
No documents available
