MSA544R7M0S001
ActiveCOILMX
INDUCTANCE 4.7 H TOL 20%
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSA544R7M0S001
ActiveCOILMX
INDUCTANCE 4.7 H TOL 20%
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSA544R7M0S001 |
|---|---|
| Current - Saturation (Isat) | 3.5 A |
| DC Resistance (DCR) [Max] | 38 mOhm |
| Height - Seated (Max) [Max] [z] | 0.189 " |
| Height - Seated (Max) [Max] [z] | 4.8 mm |
| Inductance | 4.7 ÁH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2-SMD |
| Shielding | Unshielded |
| Size / Dimension [x] | 5.8 mm |
| Size / Dimension [x] | 0.228 in |
| Size / Dimension [y] | 5.2 mm |
| Size / Dimension [y] | 0.205 " |
| Supplier Device Package | 2-SMD |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 0.68 | |
Description
General part information
MSA544R7M0S001

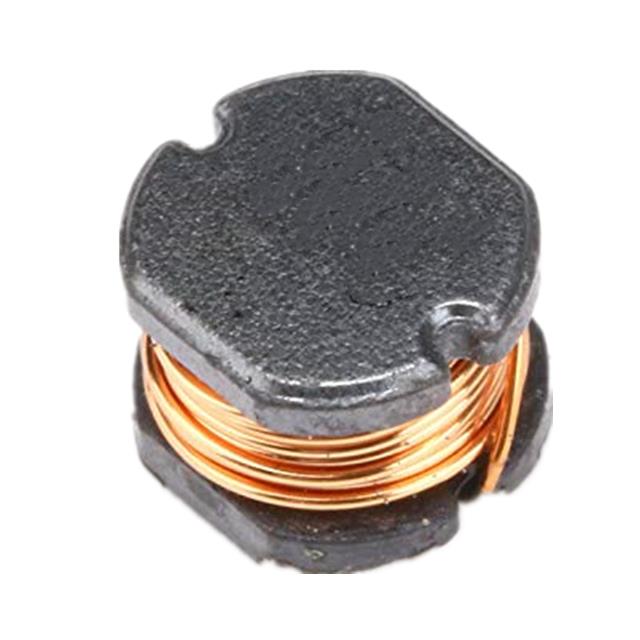

4.7 µH Unshielded Drum Core, Wirewound Inductor 38mOhm Max 2-SMD
