Technical Specifications
Parameters and characteristics for this part
| Specification | 32S160-S00N5 |
|---|---|
| Adapter Series | SMA to 7/16 |
| Adapter Type | Plug to Plug |
| Body Finish | White Bronze |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male to Male |
| Conversion Type | Between Series |
| Convert From (Adapter End) | 7/16 Plug, Male Pin |
| Convert To (Adapter End) | SMA Plug, Male Pin |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 8.3 GHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.09 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
32S160-S00N5

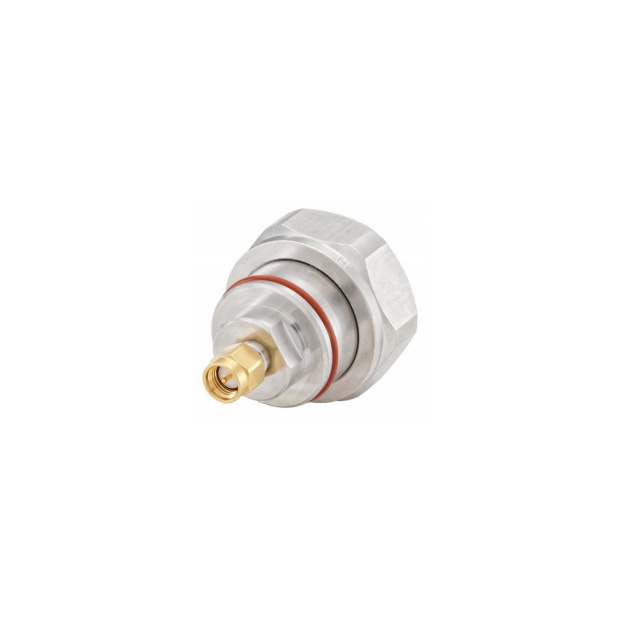

Adapter Coaxial Connector 7/16 Plug, Male Pin To SMA Plug, Male Pin 50 Ohms
