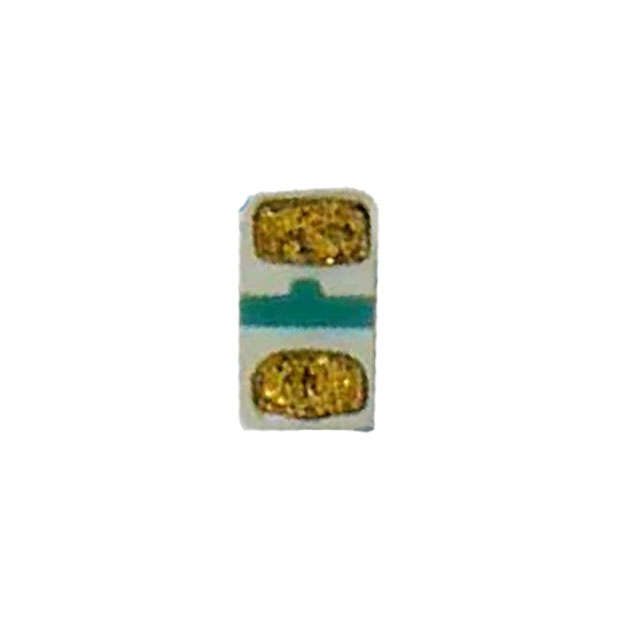

IN-S21AT2G
ActiveInolux
LED GREEN CLEAR SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IN-S21AT2G
ActiveInolux
LED GREEN CLEAR SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IN-S21AT2G |
|---|---|
| Color | Green |
| Current - Test | 2 mA |
| Height (Max) [Max] | 0.41 mm |
| Lens Size [x] | 0.65 mm |
| Lens Size [y] | 0.38 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 100 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 0.65 mm |
| Size / Dimension [y] | 0.38 mm |
| Viewing Angle | 110 ° |
| Voltage - Forward (Vf) (Typ) | 2.5 V |
| Wavelength - Dominant | 531 nm |
| Wavelength - Peak | 521 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.27 | |
| 10 | $ 0.22 | |||
| 100 | $ 0.10 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.07 | |||
| 2000 | $ 0.06 | |||
| Digi-Reel® | 1 | $ 0.27 | ||
| 10 | $ 0.22 | |||
| 100 | $ 0.10 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.07 | |||
| 2000 | $ 0.06 | |||
| Tape & Reel (TR) | 4000 | $ 0.06 | ||
| 8000 | $ 0.06 | |||
| 12000 | $ 0.05 | |||
| 28000 | $ 0.05 | |||
| 100000 | $ 0.04 | |||
Description
General part information
IN-S21AT2G
Green 531nm LED Indication - Discrete 2.5V 2-SMD, No Lead
