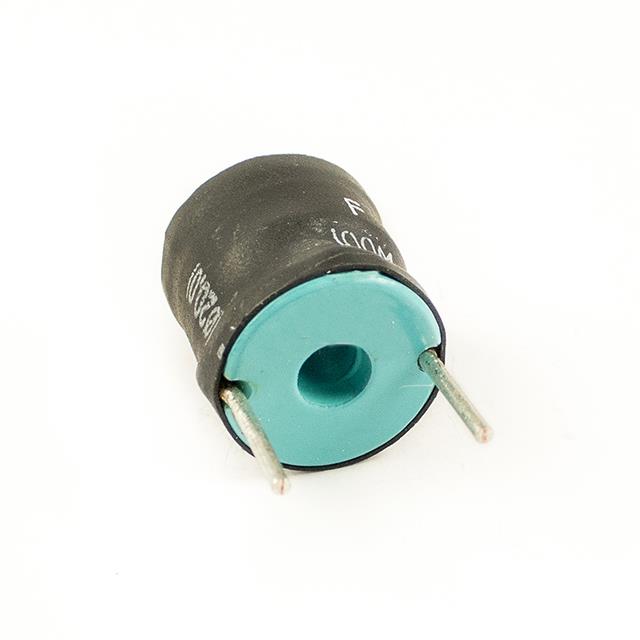

RDC20-391K-RC
ActiveAllied Components International
3900UH +/-10% RADIAL DRUM CORE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RDC20-391K-RC
ActiveAllied Components International
3900UH +/-10% RADIAL DRUM CORE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RDC20-391K-RC |
|---|---|
| Current - Saturation (Isat) | 4.9 A |
| Current Rating (Amps) | 1.6 A |
| Height - Seated (Max) [Max] [z] | 21.34 mm |
| Height - Seated (Max) [Max] [z] | 0.84 in |
| Inductance | 390 µH |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Vertical Cylinder |
| Shielding | Unshielded |
| Size / Dimension [diameter] | 0.825 in |
| Size / Dimension [diameter] | 20.96 mm |
| Supplier Device Package | Radial, Vertical Cylinder |
| Tolerance | 10 % |
| Type | Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 4.45 | |
| 5 | $ 4.40 | |||
| 10 | $ 4.35 | |||
| 15 | $ 4.30 | |||
Description
General part information
RDC20-391K-RC
390 µH Unshielded Drum Core Inductor 1.6 A 320mOhm Max Radial, Vertical Cylinder
