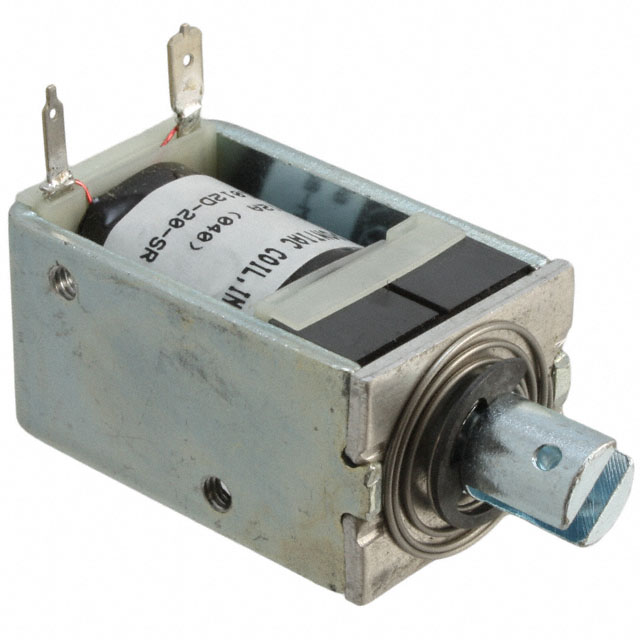

G0412A
ActiveSumida America Inc.
SOLENOID LATCH PULL INTER 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsG041xA Datasheet
G0412A
ActiveSumida America Inc.
SOLENOID LATCH PULL INTER 12V
Deep-Dive with AI
DocumentsG041xA Datasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | G0412A |
|---|---|
| DC Resistance (DCR) | 7.5 Ohm |
| Diameter - Shaft [diameter] | 11.13 mm |
| Diameter - Shaft [diameter] | 0.438 in |
| Duty Cycle | Intermittent |
| Mounting Type | Chassis Mount |
| Power (Watts) | 20 W |
| Shaft Detail | Clevis |
| Size / Dimension [x] | 2.01 in |
| Size / Dimension [x] | 51.05 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 30.99 mm |
| Size / Dimension [z] | 1.22 in |
| Stroke Length | 0.75 in |
| Stroke Length | 19.05 mm |
| Technology | Electromechanical |
| Termination Style | Quick Connect - 0.187" (4.7mm), 0.110" (2.8mm) |
| Type | Open Frame Latching (Pull) |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 38.89 | |
| 10 | $ 36.94 | |||
| 100 | $ 31.11 | |||
Description
General part information
G0412A
Intermittent Duty Solenoid Open Frame Latching (Pull) Type 0.750" (19.05mm) Stroke 12VDC Chassis Mount
