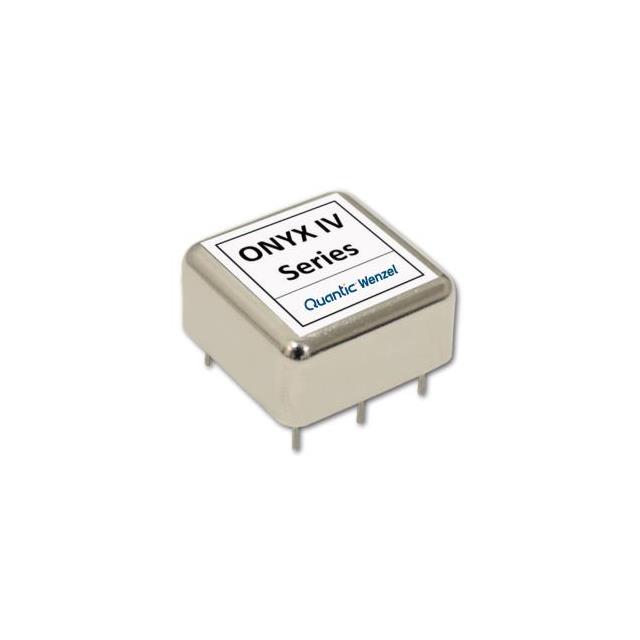

501-33920
ActiveQuantic Wenzel
XTAL OSC OCXO 10.0000MHZ TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 501-33920 |
|---|---|
| Absolute Pull Range (APR) | 1 ppm |
| Base Resonator | Crystal |
| Frequency | 10 MHz |
| Function | Low-G Sensitivity |
| Height - Seated (Max) [Max] | 0.545 " |
| Height - Seated (Max) [Max] | 13.84 mm |
| Mounting Type | Through Hole |
| Package / Case | 5-DIP Module |
| Size / Dimension [x] | 1 in |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Type | OCXO |
| Voltage - Supply | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 755.00 | |
Description
General part information
501-33920
10 MHz OCXO Oscillator 12V Low-G Sensitivity 5-DIP Module
