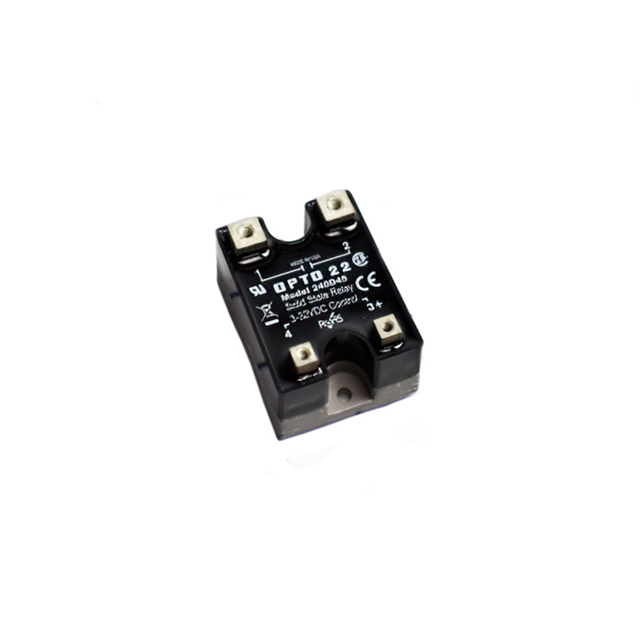

240D45
ActiveSOLID STATE RELAY, SPST, 45 A, 280 VAC, PANEL MOUNT, SCREW, DC SWITCH
Deep-Dive with AI
Search across all available documentation for this part.
240D45
ActiveSOLID STATE RELAY, SPST, 45 A, 280 VAC, PANEL MOUNT, SCREW, DC SWITCH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 240D45 |
|---|---|
| Load Current | 45 A |
| Mounting Type | Chassis Mount |
| Output Type | AC, Zero Cross |
| Package / Case | Hockey Puck |
| Termination Style | Screw Terminal |
| Voltage - Load [Max] | 280 V |
| Voltage - Load [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
240D45
The 240D45 is a Solid-state Relay with DC control. Rugged, epoxy encapsulation construction. Subjected to full load test and six times the rated current surge before and after encapsulation. 4000V of optical isolation. Unique heat-spreader technology. Designed for mounting on printed circuit boards. Zero voltage turn-on. Zero-current turn-off.
