VA-04-FZSP-AM4-7.9
ActiveVedtronics
CBL ASSY AMC4-FAKRA PL-PL 7.874"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VA-04-FZSP-AM4-7.9 |
|---|---|
| 1st Connector | AMC4 Plug, Right Angle |
| 1st Contact Gender | Male |
| 2nd Connector | Fakra Plug |
| 2nd Connector Mounting Feature | Bulkhead - Rear Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type [diameter] | 1.37 mm |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded, Z Code |
| Frequency - Max [Max] | 6000 MHz |
| Length | 7.874 in |
| Length | 200 mm |
| Overall Impedance | 50 Ohms |
| Style | AMC4 to Fakra |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 16.00 | |
Description
General part information
VA-04-FZSP-AM4-7.9

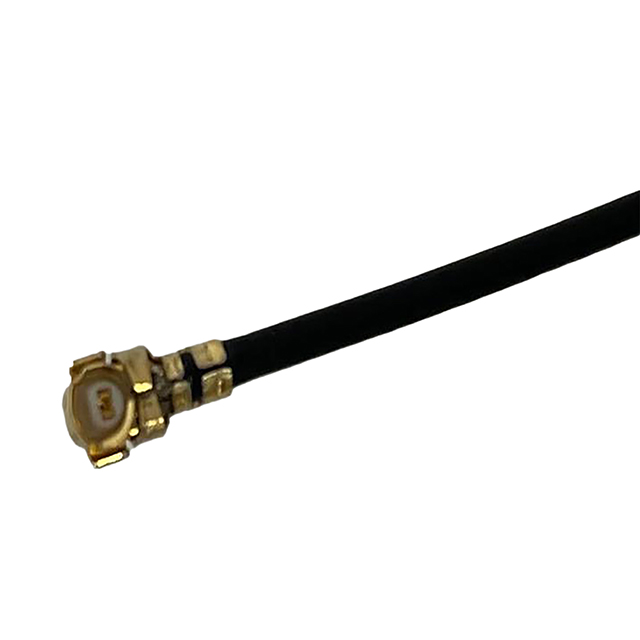

Cable Assembly Coaxial AMC4 to Fakra 1.37mm OD Coaxial Cable 7.874" (200.00mm)
