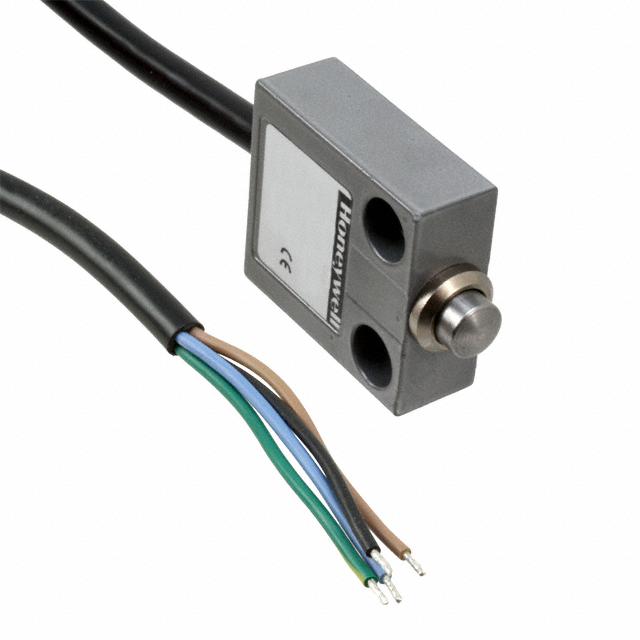

14CE1-1K
ObsoleteHoneywell Sensing and Control EMEA
SWITCH SNAP ACTION SPDT 5A 250V
Deep-Dive with AI
Search across all available documentation for this part.
14CE1-1K
ObsoleteHoneywell Sensing and Control EMEA
SWITCH SNAP ACTION SPDT 5A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 14CE1-1K |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating (Amps) | 5 A |
| Differential Travel | 0.1 mm |
| Differential Travel | 0.004 in |
| Features | Cable Length 1m |
| Ingress Protection | IP66 |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 2300 gf |
| Operating Position | 15.7 mm |
| Operating Position | 0.618 in |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Overtravel | 3 mm |
| Overtravel | 0.118 in |
| Pretravel | 0.071 in |
| Pretravel | 1.8 mm |
| Release Force | 450 gf |
| Switch Function | On-Mom |
| Termination Style | Cable Leads |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
14CE1-1K
Switch SPDT Chassis Mount
