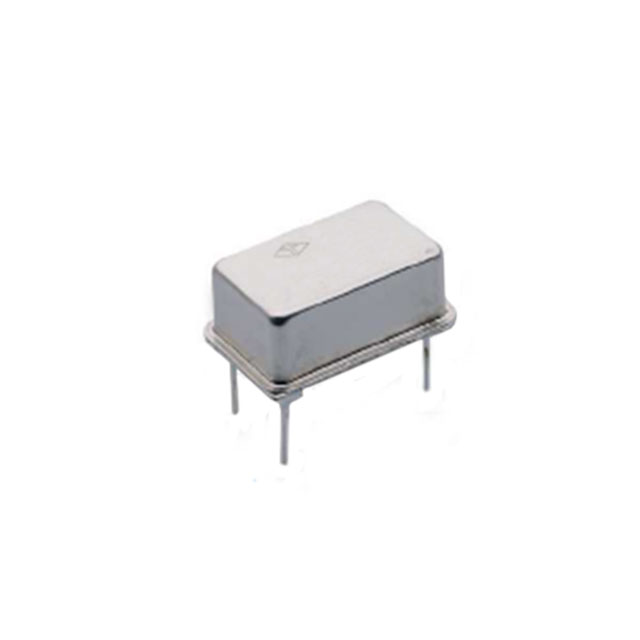

TFETTCJANF-12.288000
ActiveTaitien
XTAL OSC TCXO 12.2880MHZ CMOS TH
Deep-Dive with AI
Search across all available documentation for this part.
TFETTCJANF-12.288000
ActiveTaitien
XTAL OSC TCXO 12.2880MHZ CMOS TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TFETTCJANF-12.288000 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 20 mA |
| Frequency | 12.288 MHz |
| Frequency Stability | 4.6 ppm |
| Height - Seated (Max) [Max] [z] | 8.6 mm |
| Height - Seated (Max) [Max] [z] | 0.339 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Output | CMOS |
| Package / Case | 14-DIP, 4 Leads (Full Size, Metal Can) |
| Size / Dimension [x] | 0.803 " |
| Size / Dimension [x] | 20.4 mm |
| Size / Dimension [y] | 12.8 mm |
| Size / Dimension [y] | 0.504 " |
| Type | TCXO |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 50 | $ 25.44 | |
Description
General part information
TFETTCJANF-12.288000
12.288 MHz TCXO CMOS Oscillator 3.3V 14-DIP, 4 Leads (Full Size, Metal Can)
