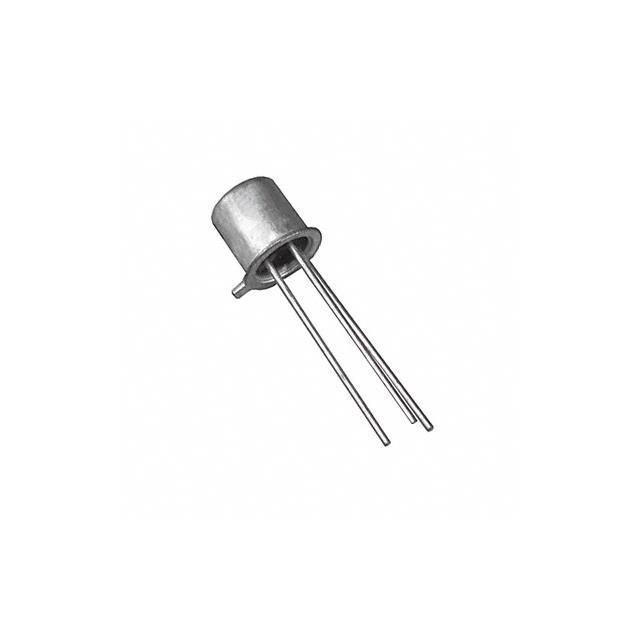

2N2222A
ActiveGood-Ark Semiconductor
TRANSISTOR, NPN, 0.8A, 40V, TO-1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2N2222A
ActiveGood-Ark Semiconductor
TRANSISTOR, NPN, 0.8A, 40V, TO-1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2N2222A |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 800 mA |
| Current - Collector Cutoff (Max) [Max] | 10 nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | 100 |
| Frequency - Transition | 300 MHz |
| Mounting Type | Through Hole |
| Operating Temperature | 175 °C |
| Package / Case | TO-18-3 Metal Can, TO-206AA |
| Power - Max [Max] | 500 mW |
| Supplier Device Package | TO-18 |
| Transistor Type | NPN |
| Vce Saturation (Max) @ Ib, Ic | 1 V |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 40 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.90 | |
| 1 | $ 1.88 | |||
| 10 | $ 1.56 | |||
| 100 | $ 2.69 | |||
| 100 | $ 1.24 | |||
| 500 | $ 1.05 | |||
| 1000 | $ 0.89 | |||
| 2000 | $ 0.85 | |||
| 5000 | $ 0.81 | |||
| 10000 | $ 0.79 | |||
Description
General part information
2N2222A
Bipolar (BJT) Transistor NPN 40 V 800 mA 300MHz 500 mW Through Hole TO-18
