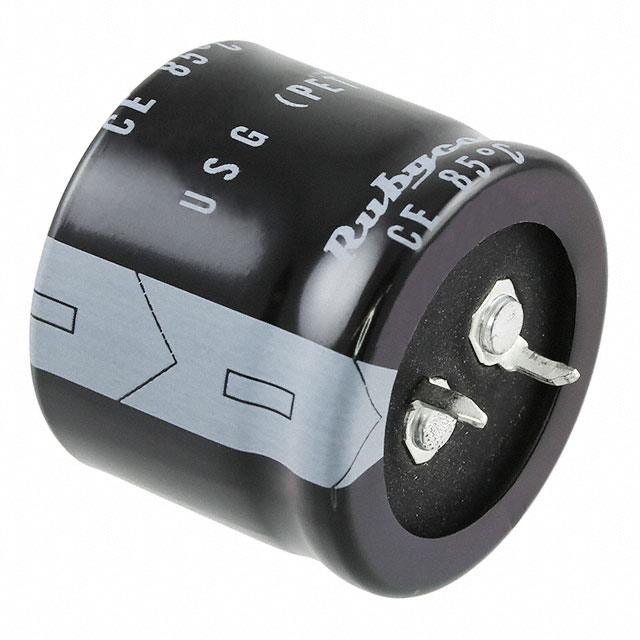

35USG18000MEFCSN35X35
ActiveRubycon
CAP ALUM 18000UF 20% 35V SNAP TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 35USG18000MEFCSN35X35 |
|---|---|
| Applications | General Purpose |
| Capacitance | 18000 µF |
| Height - Seated (Max) [Max] [z] | 37 mm |
| Height - Seated (Max) [Max] [z] | 1.457 in |
| Lead Spacing | 0.394 in |
| Lead Spacing | 10 mm |
| Lifetime @ Temp. | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can - Snap-In |
| Polarization | Polar |
| Ripple Current @ High Frequency | 6.555 A |
| Ripple Current @ Low Frequency | 5.7 A |
| Size / Dimension [diameter] | 1.378 in |
| Size / Dimension [diameter] | 35 mm |
| Tolerance | 20 % |
| Voltage - Rated | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.29 | |
| 10 | $ 5.11 | |||
| 50 | $ 4.21 | |||
| 100 | $ 3.93 | |||
| 500 | $ 3.44 | |||
| 1000 | $ 3.29 | |||
| 2500 | $ 3.12 | |||
Description
General part information
35USG18000MEFCSN35X35
18000 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C
