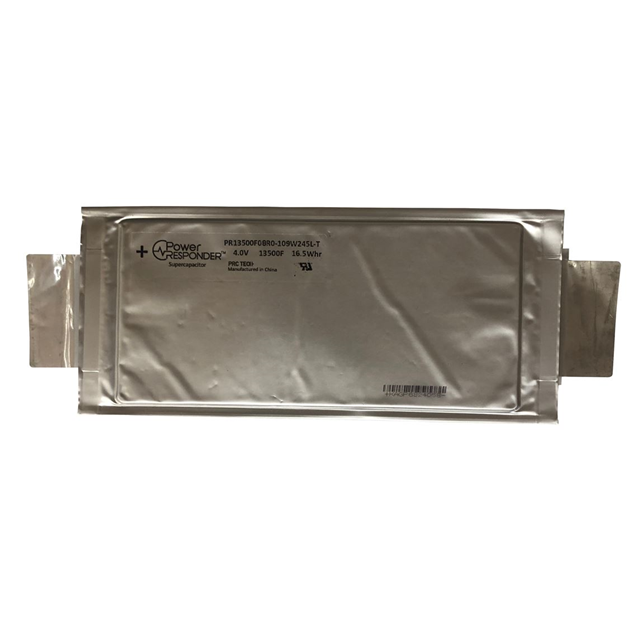

PR13500F08R0-109W245L-T
ActivePRC Tech LLC
13500 FARAD HIGH ENERGY SUPERCAP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PR13500F08R0-109W245L-T
ActivePRC Tech LLC
13500 FARAD HIGH ENERGY SUPERCAP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PR13500F08R0-109W245L-T |
|---|---|
| Capacitance | 13500 F |
| ESR (Equivalent Series Resistance) | 3 mOhm |
| Height - Seated (Max) [Max] [z] | 8 mm |
| Height - Seated (Max) [Max] [z] | 0.315 in |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | Nonstandard SMD |
| Size / Dimension [x] | 9.646 in |
| Size / Dimension [x] | 245 mm |
| Size / Dimension [y] | 109 mm |
| Size / Dimension [y] | 4.291 in |
| Termination | SMD (SMT) Tabs |
| Tolerance [Max] | 30 % |
| Tolerance [Min] | 0 % |
| Voltage - Rated | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 2 | $ 120.00 | |
Description
General part information
PR13500F08R0-109W245L-T
13500 F (EDLC) Supercapacitor 4 V Nonstandard SMD 3mOhm @ 1kHz 1000 Hrs @ 65°C
