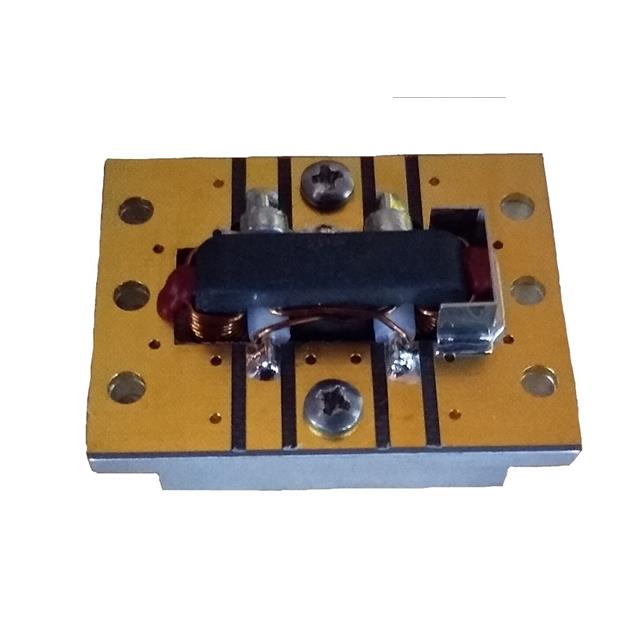

C4-033
ActiveI.F. Engineering Corp and CrossPoint Technologies
RF DIR COUPLER 4 PORT 20DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C4-033 |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | 20 dB |
| Frequency [Max] | 512 MHz |
| Frequency [Min] | 20 MHz |
| Insertion Loss | 0.3 dB |
| Isolation | 18 dB |
| Package / Case | Nonstandard |
| Power - Max [Max] | 100 W |
| Supplier Device Package | SMD |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 165.00 | |
| 5 | $ 160.00 | |||
| 10 | $ 155.00 | |||
Description
General part information
C4-033
RF Directional Coupler General Purpose 20MHz ~ 512MHz 20 ± 2dB 100W Nonstandard
