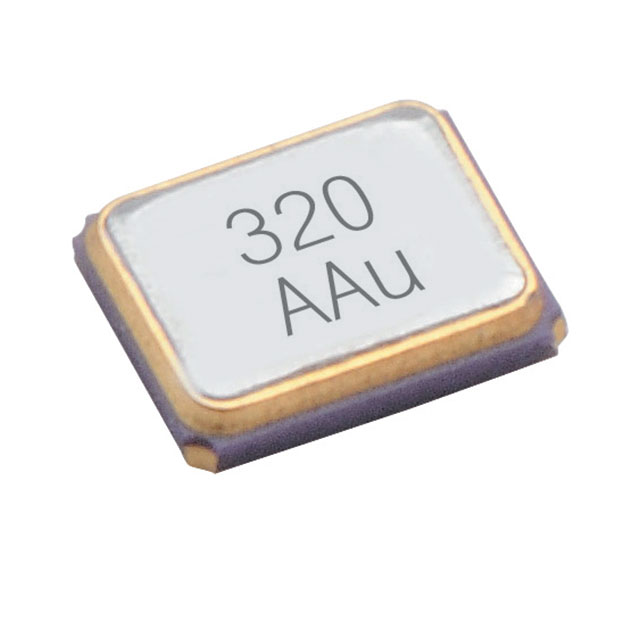

C2E-27.120-8-3030-R
ActiveAker Technology Corp
CRYSTAL 27.1200MHZ 8PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C2E-27.120-8-3030-R
ActiveAker Technology Corp
CRYSTAL 27.1200MHZ 8PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C2E-27.120-8-3030-R |
|---|---|
| ESR (Equivalent Series Resistance) | 100 Ohms |
| Frequency | 27.12 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) [Max] | 0.026 in |
| Height - Seated (Max) [Max] | 0.65 mm |
| Load Capacitance | 8 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 25 | $ 0.75 | |
| 100 | $ 0.53 | |||
| 200 | $ 0.51 | |||
| 1000 | $ 0.21 | |||
Description
General part information
C2E-27.120-8-3030-R
27.12 MHz ±30ppm Crystal 8pF 100 Ohms 4-SMD, No Lead
