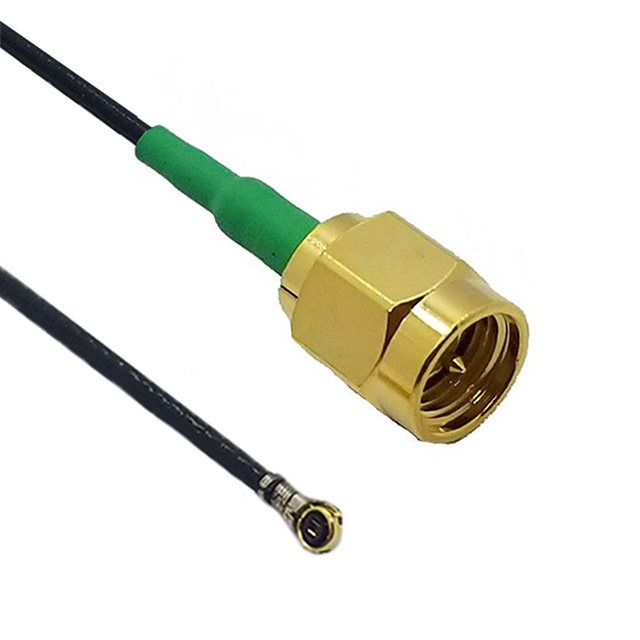

CB1.13-IPX4L-SAMGT-12IN
ActiveLighthorse Technologies, Inc
CBL ASSY IPEX MHF4L-SMA P-P 12"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CB1.13-IPX4L-SAMGT-12IN
ActiveLighthorse Technologies, Inc
CBL ASSY IPEX MHF4L-SMA P-P 12"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CB1.13-IPX4L-SAMGT-12IN |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | IPEX MHF4L Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | 1.13mm OD Coaxial Cable |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length | 12 " |
| Length | 304.8 mm |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | IPEX MHF4L to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.12 | |
| 10 | $ 8.58 | |||
| 25 | $ 8.10 | |||
| 50 | $ 7.68 | |||
| 100 | $ 7.29 | |||
| 250 | $ 6.63 | |||
| 500 | $ 6.08 | |||
| 1000 | $ 5.61 | |||
Description
General part information
CB1.13-IPX4L-SAMGT-12IN
Cable Assembly Coaxial IPEX MHF4L to SMA 1.13mm OD Coaxial Cable 12.00" (304.80mm)
