Technical Specifications
Parameters and characteristics for this part
| Specification | ERNB-3025-NOWC2 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass, Polybutylene Terephthalate (PBT) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | NPN-NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M18 |
| Sensing Distance | 0.984 in |
| Sensing Distance | 25 mm |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 50.65 | |
| 25 | $ 45.59 | |||
Description
General part information
ERNB-3025-NOWC2

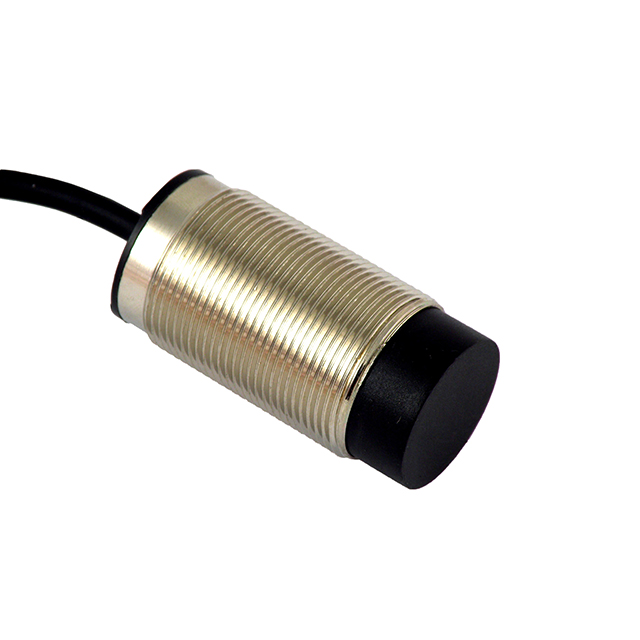

Inductive Proximity Sensor 0.984" (25mm) IP67 Cylinder, Threaded - M18
