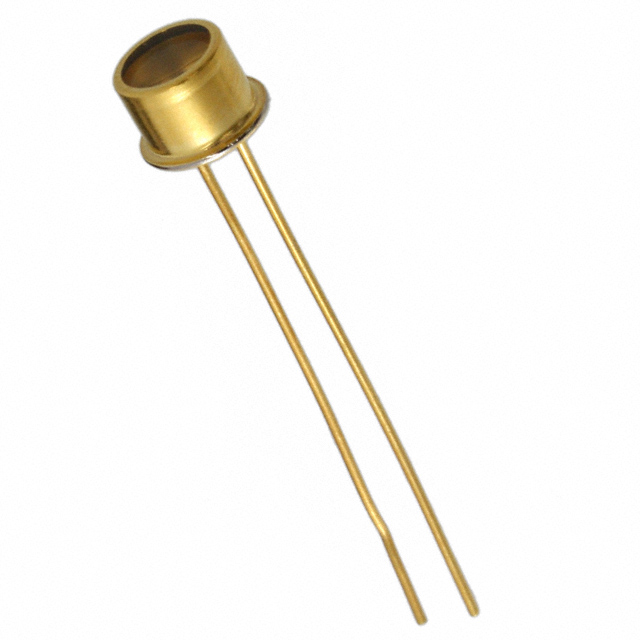

ODD-1W
ActiveOpto Diode Corp
SENSOR PHOTODIODE 940NM TO18
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ODD-1W
ActiveOpto Diode Corp
SENSOR PHOTODIODE 940NM TO18
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ODD-1W |
|---|---|
| Active Area | 1 mm˛ |
| Color - Enhanced | Red |
| Current - Dark (Typ) | 200 pA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -55 °C |
| Response Time | 8 ns |
| Responsivity @ nm | 0.4 A/W |
| Spectral Range [Max] [x] | 1100 nm |
| Spectral Range [Min] [x] | 400 nm |
| Voltage - DC Reverse (Vr) (Max) [Max] | 60 V |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.20 | |
| 10 | $ 8.50 | |||
Description
General part information
ODD-1W
Photodiode 940nm 8ns
Documents
Technical documentation and resources
