09661187502
ActiveHARTING Technology Group
D-SUB 9PIN FEMALE IDC, 4-40UNC, PL3 ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
09661187502
ActiveHARTING Technology Group
D-SUB 9PIN FEMALE IDC, 4-40UNC, PL3 ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 09661187502 |
|---|---|
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 2 A |
| Dielectric Material | Glass Filled, Polybutylene Terephthalate (PBT), Polyester |
| Features | Feed Through |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Shell Material, Finish | Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | IDC, Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
09661187502

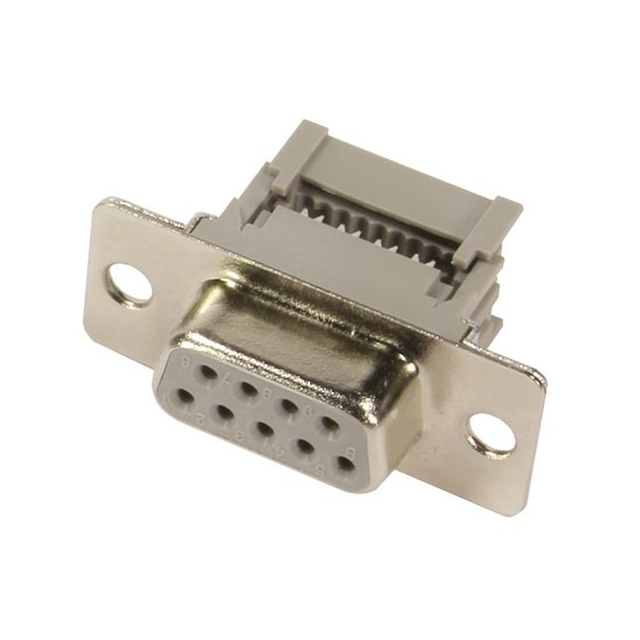

9 Position D-Sub Receptacle, Female Sockets Connector
