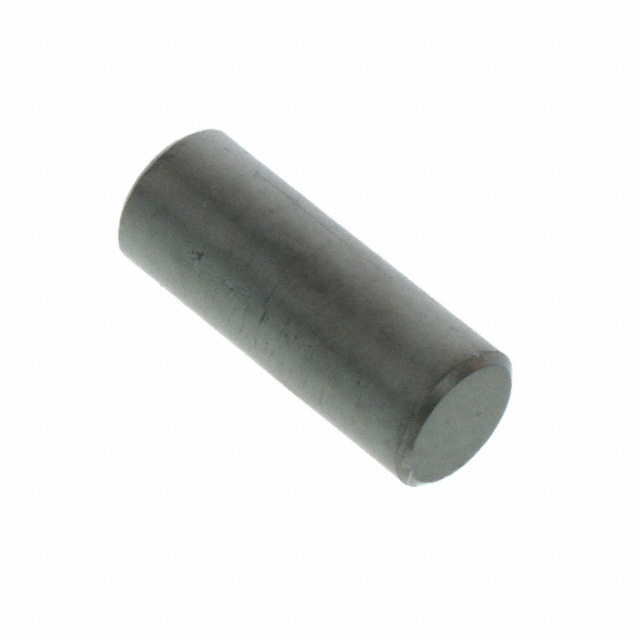

4077485111
ActiveFair-Rite Products Corp.
FERRITE CORE ROD 77
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4077485111
ActiveFair-Rite Products Corp.
FERRITE CORE ROD 77
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4077485111 |
|---|---|
| Core Type | Rod |
| Diameter [diameter] | 0.484 in |
| Diameter [diameter] | 12.3 mm |
| Effective Area (Ae) mm² | 7.07 mm² |
| Effective Length (le) mm [custom] | 25 mm |
| Effective Permeability (µe) | 29 |
| Finish | Uncoated |
| Gap | Ungapped |
| Initial Permeability (µi) | 2000 µi |
| Length | 31.75 mm |
| Length | 1.25 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.59 | |
| 10 | $ 1.37 | |||
| 25 | $ 1.04 | |||
| 50 | $ 0.99 | |||
| 100 | $ 0.97 | |||
Description
General part information
4077485111
Uncoated 77 Ferrite Core ROD Type 1.250" (31.75mm) Length Width 0.484" (12.30mm) Diameter Height
