AN150203-03H
ActiveSevskiy GmbH
RF ANT 868/915 GNSS PCB U.FL.
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AN150203-03H
ActiveSevskiy GmbH
RF ANT 868/915 GNSS PCB U.FL.
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AN150203-03H |
|---|---|
| Antenna Type | PCB Trace |
| Applications | RFID, ISM, LP-WAN, IoT, GNSS, Smart Meters |
| Features | Cable |
| Features | 200 mm |
| Frequency (Center/Band) | 1601.5 GHz, 893.5 MHz |
| Frequency Range [Max] | 924 MHz, 1.61 GHz |
| Frequency Range [Min] | 863 MHz, 1.593 GHz |
| Gain | 0.6 dBi, 1.4 dBi |
| Height (Max) [Max] [z] | 1 mm |
| Height (Max) [Max] [z] | 0.039 in |
| Mounting Type | Bracket, Adhesive |
| Number of Bands | 2 |
| Power - Max [Max] | 10 W |
| Return Loss | -8 dB |
| RF Family/Standard | General ISM, Navigation |
| Termination | I-PEX MHF1, U.FL (UMCC) |
| VSWR | 2.32 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.49 | |
| 10 | $ 2.40 | |||
| 50 | $ 2.30 | |||
| 100 | $ 2.22 | |||
| 500 | $ 2.13 | |||
| 1000 | $ 2.05 | |||
| 5000 | $ 1.97 | |||
| 10000 | $ 1.90 | |||
| 50000 | $ 1.83 | |||
Description
General part information
AN150203-03H

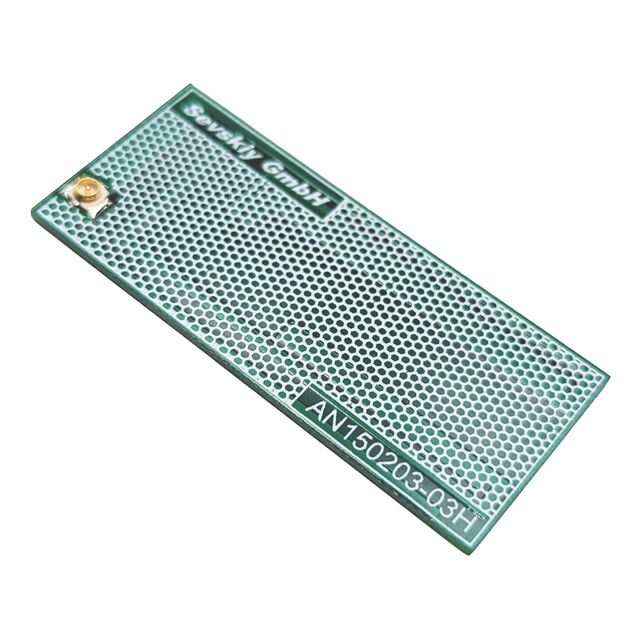

RF ANTENNA GNSS, IoT, ISM, LP-WAN, RFID, Smart Meters PCB Trace U.FL (UMCC), I-PEX MHF1 Adhesive, Bracket
