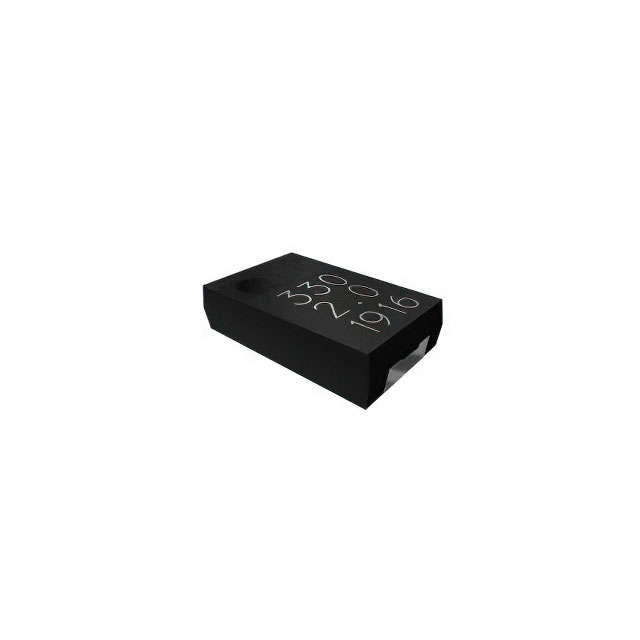

SA10JM470A19R25XXX
ActiveAishi Capacitors (Hunan Aihua Group
CAP ALUM POLY 47UF 20% 6.3V SMD
Deep-Dive with AI
Search across all available documentation for this part.
SA10JM470A19R25XXX
ActiveAishi Capacitors (Hunan Aihua Group
CAP ALUM POLY 47UF 20% 6.3V SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SA10JM470A19R25XXX |
|---|---|
| Applications | General Purpose |
| Capacitance | 47 µF |
| ESR (Equivalent Series Resistance) | 25 mOhm |
| Height - Seated (Max) [Max] [z] | 2 mm |
| Height - Seated (Max) [Max] [z] | 0.079 in |
| Lifetime @ Temp. | 2000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 7343 Metric |
| Package / Case | 2917 |
| Ripple Current @ High Frequency | 1.8 A |
| Size / Dimension [x] | 0.287 " |
| Size / Dimension [x] | 7.3 mm |
| Size / Dimension [y] | 4.3 mm |
| Size / Dimension [y] | 0.169 " |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 6.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.20 | |
| 10 | $ 0.13 | |||
| 50 | $ 0.08 | |||
| 100 | $ 0.07 | |||
| 500 | $ 0.05 | |||
| 1000 | $ 0.04 | |||
| Digi-Reel® | 1 | $ 0.20 | ||
| 10 | $ 0.13 | |||
| 50 | $ 0.08 | |||
| 100 | $ 0.07 | |||
| 500 | $ 0.05 | |||
| 1000 | $ 0.04 | |||
| Tape & Reel (TR) | 3500 | $ 0.04 | ||
| 7000 | $ 0.03 | |||
| 10500 | $ 0.03 | |||
| 17500 | $ 0.03 | |||
| 24500 | $ 0.03 | |||
| 35000 | $ 0.03 | |||
| 87500 | $ 0.03 | |||
| 175000 | $ 0.02 | |||
| 350000 | $ 0.02 | |||
Description
General part information
SA10JM470A19R25XXX
47 µF 6.3 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 25mOhm 2000 Hrs @ 105°C
Documents
Technical documentation and resources
No documents available
