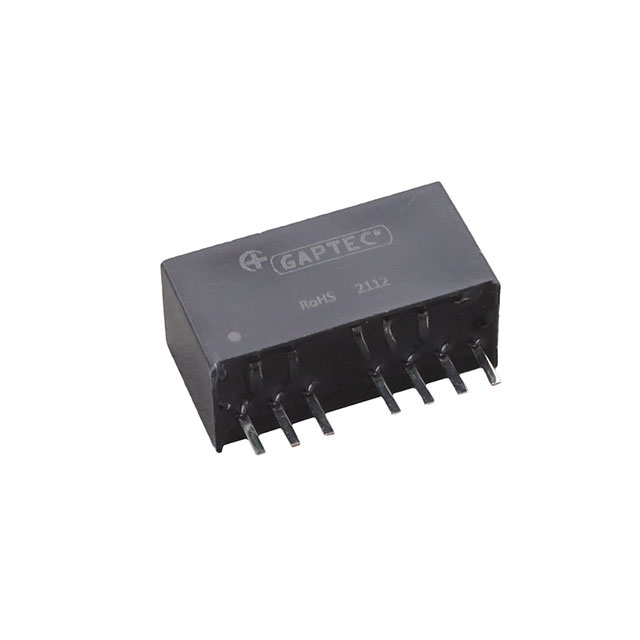

1S8W_0505S4RP
ActiveGAPTEC Electronic
ISOLATED MODULE DC DC CONVERTERS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1S8W_0505S4RP
ActiveGAPTEC Electronic
ISOLATED MODULE DC DC CONVERTERS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1S8W_0505S4RP |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 200 mA |
| Efficiency | 80 % |
| Features | Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-SIP Module |
| Package / Case | 7 Leads |
| Size / Dimension [x] | 21.8 mm |
| Size / Dimension [x] | 0.86 in |
| Size / Dimension [y] | 0.36 " |
| Size / Dimension [y] | 9.2 mm |
| Size / Dimension [z] | 0.44 " |
| Size / Dimension [z] | 11.1 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 9 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 2000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 16.59 | |
| 5 | $ 15.97 | |||
| 23 | $ 15.41 | |||
| 46 | $ 15.16 | |||
| 69 | $ 15.01 | |||
| 115 | $ 14.83 | |||
| 253 | $ 14.56 | |||
| 506 | $ 14.32 | |||
Description
General part information
1S8W_0505S4RP
Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 9V Input
