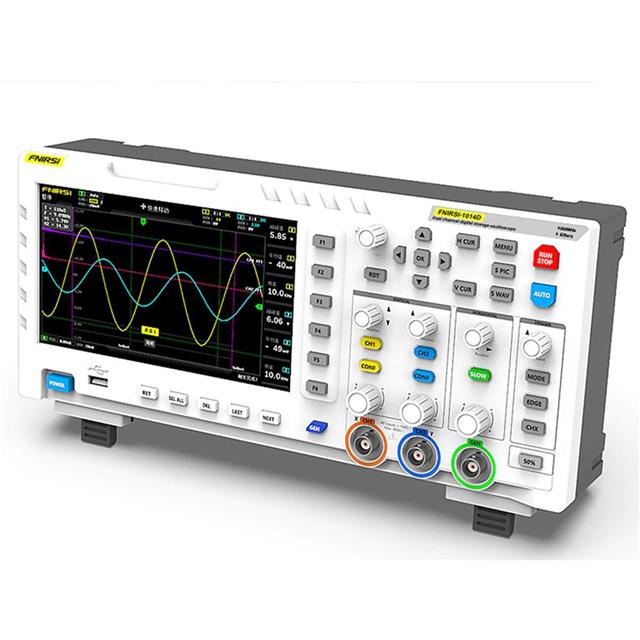

1014D
ActiveFNIRSI
OSCILLOSCOPE + SIGNAL GENERATOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1014D
ActiveFNIRSI
OSCILLOSCOPE + SIGNAL GENERATOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1014D |
|---|---|
| Bandwidth | 100 MHz |
| Channels | 2 Analog |
| Display Type | LCD - Color |
| Includes | Manual |
| Input Impedance | 1 M |
| Interface | USB |
| Memory Size | 240 kpts |
| Probe Type | Passive 10:1, Passive 1:1 |
| Rise Time (Typ) | 3 ns |
| Sampling Rate (Per Second) | 1 G |
| Type | Bench, Digital |
| Voltage - Input (Max) [Max] | 400 V |
| Voltage - Supply | 5 V |
| Voltage - Supply | USB Powered |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 199.00 | |
Description
General part information
1014D
100 MHz Bench, Digital Oscilloscopes USB Interface LCD - Color Display 2 Analog Channel 400V Save
