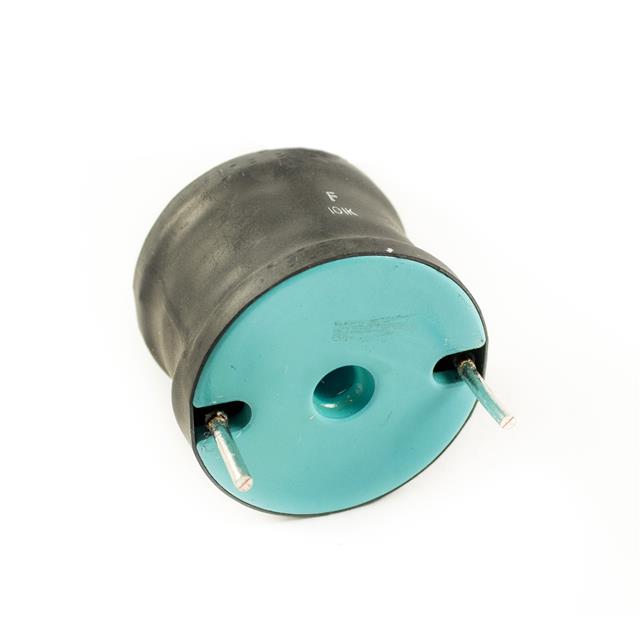

RDC60-123K-RC
ActiveAllied Components International
12000UH +/-10% RADIAL DRUM CORE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RDC60-123K-RC
ActiveAllied Components International
12000UH +/-10% RADIAL DRUM CORE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RDC60-123K-RC |
|---|---|
| Current - Saturation (Isat) | 2.4 A |
| Current Rating (Amps) | 2.8 A |
| DC Resistance (DCR) [Max] | 1.54 Ohm |
| Height - Seated (Max) [Max] | 1.5 " |
| Height - Seated (Max) [Max] | 38.1 mm |
| Inductance | 12 mH |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Vertical Cylinder |
| Shielding | Unshielded |
| Size / Dimension [diameter] | 2 in |
| Size / Dimension [diameter] | 50.8 mm |
| Supplier Device Package | Radial |
| Tolerance | 10 % |
| Type | Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 18.75 | |
| 5 | $ 18.25 | |||
| 10 | $ 17.75 | |||
| 15 | $ 17.50 | |||
Description
General part information
RDC60-123K-RC
12 mH Unshielded Drum Core Inductor 2.8 A 1.54Ohm Max Radial, Vertical Cylinder
