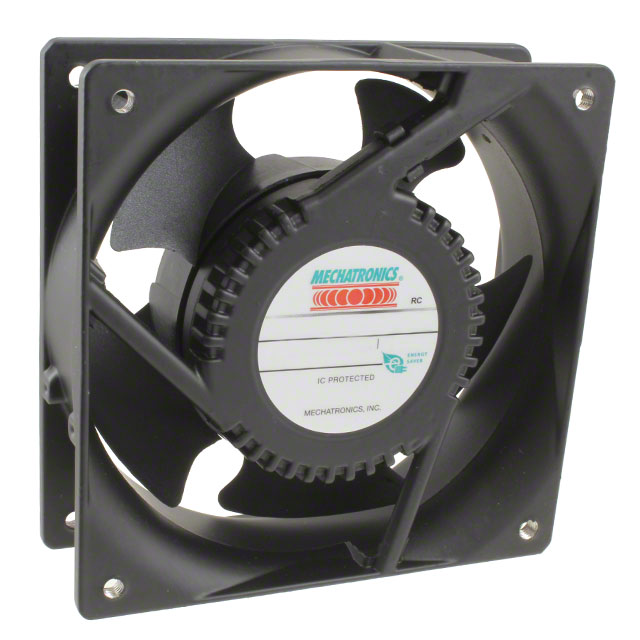

LPC12A99-BTER-B1+6

Obsolete

Mechatronics Bearing Group

FAN AXIAL 120X38MM 90-264VAC

Search across all available documentation for this part.

Obsolete

Mechatronics Bearing Group

FAN AXIAL 120X38MM 90-264VAC

Technical Specifications

Parameters and characteristics for this part

Specification	LPC12A99-BTER-B1+6

Air Flow	3.92 mł/min
Air Flow	140 CFM
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Electronic Commutation (EC), PWM Control
Material - Blade	Plastic
Material - Frame	Magnesium
Noise	56 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	12 W
RPM	4000 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	0.44 in H2O
Static Pressure	109.6 Pa
Termination	4 Terminals
Voltage - Rated [Max]	264 VAC
Voltage - Rated [Min]	90 VAC
Voltage Range [Max]	264 VAC
Voltage Range [Min]	90 VAC
Weight	370.13 g
Weight	0.816 lb
Width [y]	38 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 90 ~ 264VAC Square - 120mm L x 120mm H Ball 140.0 CFM (3.92m³/min) 4 Terminals
