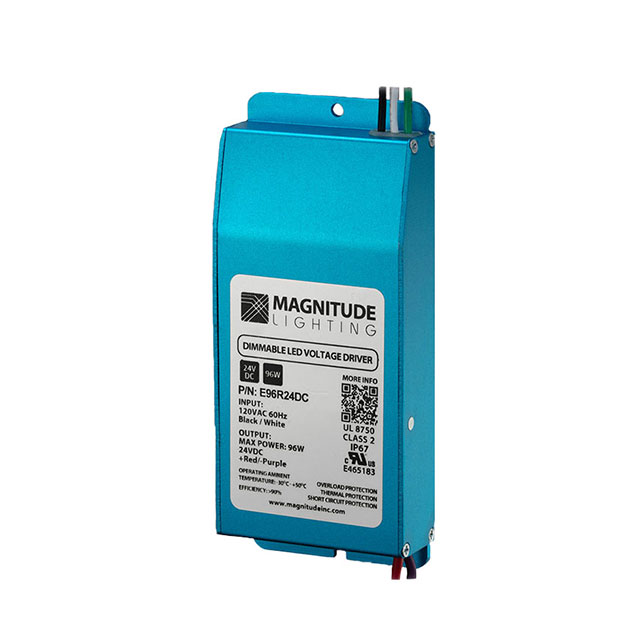

E96R24DC
ActiveMagnitude Lighting
E-SERIES, CV, PHASE-CUT, RECOGNI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
E96R24DC
ActiveMagnitude Lighting
E-SERIES, CV, PHASE-CUT, RECOGNI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | E96R24DC |
|---|---|
| Approval Agency | UL, FCC, CSA |
| Current - Output (Max) [Max] | 4.16 A |
| Dimming | TRIAC, MLV |
| Efficiency | 90 % |
| Features | OCP, OVP, SS |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 96 W |
| Ratings | IP67 |
| Size / Dimension [x] | 125 mm |
| Size / Dimension [x] | 4.92 in |
| Size / Dimension [y] | 2.2 in |
| Size / Dimension [y] | 55.9 mm |
| Size / Dimension [z] | 20.1 mm |
| Size / Dimension [z] | 0.79 in |
| Standard Number | 15B, 879, 8750, CSA C22.2 No. 250 13-14, CSA C22.2 No. 207-M89 |
| Termination Style | Wire Leads |
| Topology | Buck |
| Type | Constant Voltage |
| Voltage - Input (Max) [Max] | 130 VAC |
| Voltage - Input (Min) [Min] | 100 VAC |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 106.34 | |
| 5 | $ 101.51 | |||
| 10 | $ 96.67 | |||
Description
General part information
E96R24DC
4.16A 24V Constant Voltage LED Driver Buck Topology 1 Output
