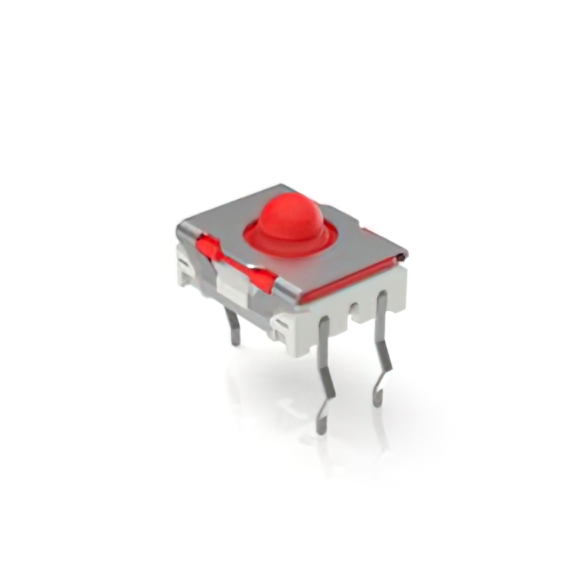

1.14.005.016/0000 - 1.14.005.016/0000

1.14.005.016/0000

Active
RAFI USA

SWITCH TACTILE SPST-NO 0.1A 35V

Deep-Dive with AI

Search across all available documentation for this part.

1.14.005.016/0000 - 1.14.005.016/0000

1.14.005.016/0000

Active
RAFI USA

SWITCH TACTILE SPST-NO 0.1A 35V

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

Specification1.14.005.016/0000
Actuator Height off PCB, Vertical [z]3.85 mm
Actuator OrientationTop Actuated
Actuator TypeStandard
CircuitSPST-NO
Contact Rating @ Voltage35 VAC/DC, 0.1 A
IlluminationNon-Illuminated
Ingress ProtectionIP67 - Dust Tight, Waterproof
Mechanical Life250000 Cycles
Mounting TypeThrough Hole
Operating Force1224 gf
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Outline [x]6.4 mm
Outline [y]5.1 mm
Switch FunctionOff-Mom
Switch Travel1.1 mm
Termination StylePC Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 1.90
10$ 1.66
25$ 1.57
100$ 1.44
250$ 1.36
500$ 1.30
1000$ 1.25
2500$ 1.18
5000$ 1.13

Description

General part information

1.14.005.016/0000

Tactile Switch SPST-NO Top Actuated Through Hole

Documents

Technical documentation and resources

No documents available
