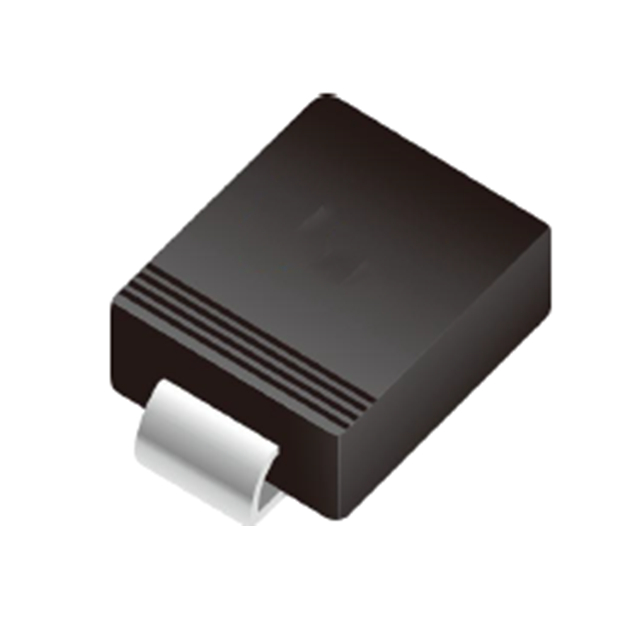

SMDJ20CA
ActiveNextGen Components
TVS DIODE 20VWM 32.4VC SMC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMDJ20CA
ActiveNextGen Components
TVS DIODE 20VWM 32.4VC SMC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMDJ20CA |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels [custom] | 1 |
| Current - Peak Pulse (10/1000µs) | 92.6 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 °C |
| Package / Case | SMC, DO-214AB |
| Power - Peak Pulse | 3000 W |
| Power - Peak Pulse | 3 kW |
| Power Line Protection | False |
| Supplier Device Package | SMC (DO-214AB) |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 22.2 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 32.4 V |
| Voltage - Reverse Standoff (Typ) | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.10 | |
| 10 | $ 0.90 | |||
| 100 | $ 0.70 | |||
| 500 | $ 0.59 | |||
| 1000 | $ 0.48 | |||
| Digi-Reel® | 1 | $ 1.10 | ||
| 10 | $ 0.90 | |||
| 100 | $ 0.70 | |||
| 500 | $ 0.59 | |||
| 1000 | $ 0.48 | |||
| Tape & Reel (TR) | 3000 | $ 0.41 | ||
| 3000 | $ 0.53 | |||
Description
General part information
SMDJ20CA
32.4V Clamp 92.6A Ipp Tvs Diode Surface Mount SMC (DO-214AB)
