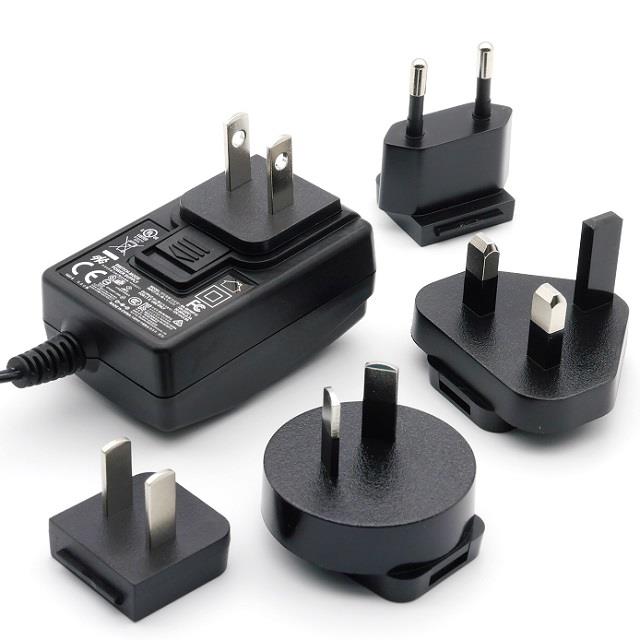

6A-061WP12-112
ActiveENG ELECTRIC CO., LTD
AC/DC WALL MOUNT ADAPTER 12V 6W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6A-061WP12-112
ActiveENG ELECTRIC CO., LTD
AC/DC WALL MOUNT ADAPTER 12V 6W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6A-061WP12-112 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | FCC, UL, IEC, PSE, RCM, UKCA, CB, BSMI, CSA, CCC, AS/NZS |
| Cord Length | 60.2 in |
| Cord Length | 1.53 m |
| Current - Output (Max) [Max] | 500 mA |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | Multi-Blade |
| Input Type | Multi-Blade (Included) |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 6 W |
| Region Utilized | International |
| Size / Dimension [x] | 2.44 in |
| Size / Dimension [x] | 62 mm |
| Size / Dimension [y] | 40.5 mm |
| Size / Dimension [y] | 1.59 " |
| Size / Dimension [z] | 1.22 in |
| Size / Dimension [z] | 31 mm |
| Standard Number | 60950-1, 62368-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
6A-061WP12-112
12V 6 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input
