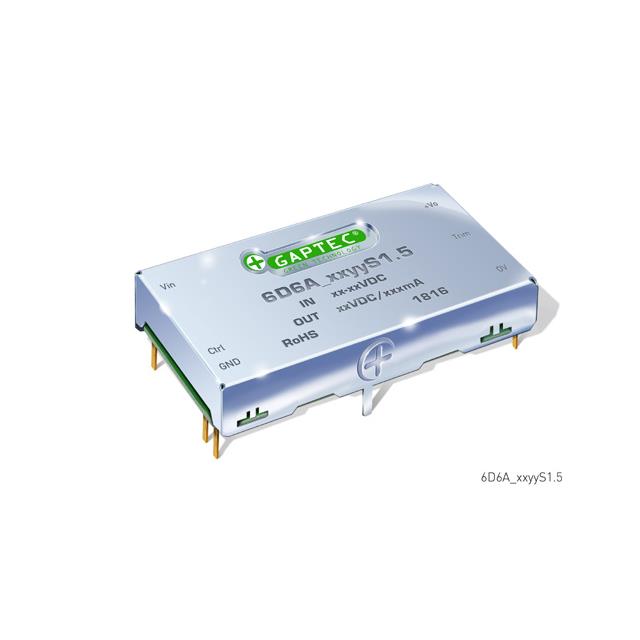

6T6AW_2412S1.5RP
ObsoleteGAPTEC Electronic
DC-DC INDUSTRIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6T6AW_2412S1.5RP
ObsoleteGAPTEC Electronic
DC-DC INDUSTRIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6T6AW_2412S1.5RP |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 500 mA |
| Efficiency | 80 % |
| Features | Adjustable Output |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-SMD Module |
| Power (Watts) | 6 W |
| Size / Dimension [x] | 31.6 mm |
| Size / Dimension [x] | 1.24 in |
| Size / Dimension [y] | 0.71 in |
| Size / Dimension [y] | 18.1 mm |
| Size / Dimension [z] | 6.3 mm |
| Size / Dimension [z] | 6.35 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 24 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 12.86 | |
| 5 | $ 12.12 | |||
| 10 | $ 11.82 | |||
| 25 | $ 11.43 | |||
| 50 | $ 11.14 | |||
| 100 | $ 10.86 | |||
Description
General part information
6T6AW_2412S1.5RP
Isolated Module DC DC Converter 1 Output 12V 500mA 18V - 24V Input
Documents
Technical documentation and resources
