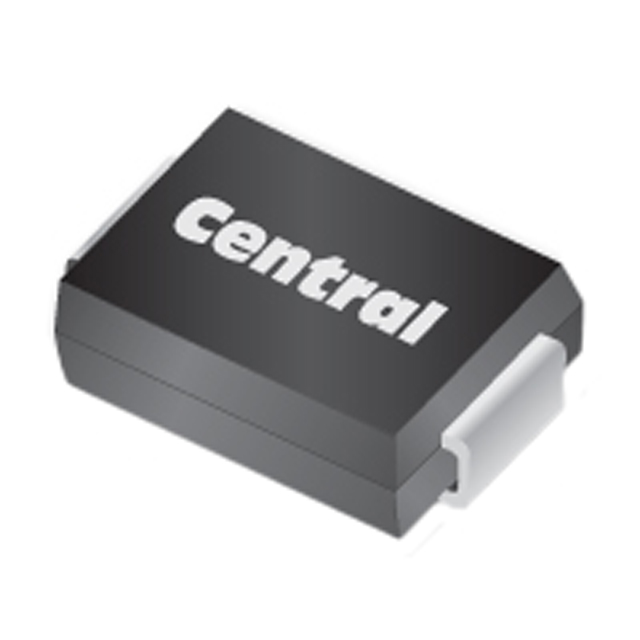

1.5SMC200A TR13 PBFREE
ActiveCentral Semiconductor Corp
TVS DIODE 171VWM 274VC SMC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1.5SMC200A TR13 PBFREE
ActiveCentral Semiconductor Corp
TVS DIODE 171VWM 274VC SMC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1.5SMC200A TR13 PBFREE |
|---|---|
| Applications | General Purpose |
| Current - Peak Pulse (10/1000µs) | 5.5 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 °C |
| Package / Case | SMC, DO-214AB |
| Power - Peak Pulse | 1.5 kW |
| Power - Peak Pulse | 1500 W |
| Power Line Protection | False |
| Supplier Device Package | SMC |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 190 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 274 V |
| Voltage - Reverse Standoff (Typ) | 171 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.93 | |
| 10 | $ 0.76 | |||
| 100 | $ 0.59 | |||
| 500 | $ 0.50 | |||
| 1000 | $ 0.41 | |||
| Digi-Reel® | 1 | $ 0.93 | ||
| 10 | $ 0.76 | |||
| 100 | $ 0.59 | |||
| 500 | $ 0.50 | |||
| 1000 | $ 0.41 | |||
| Tape & Reel (TR) | 3000 | $ 0.39 | ||
| 6000 | $ 0.37 | |||
| 9000 | $ 0.35 | |||
Description
General part information
1.5SMC200A TR13 PBFREE
274V Clamp 5.5A Ipp Tvs Diode Surface Mount SMC
