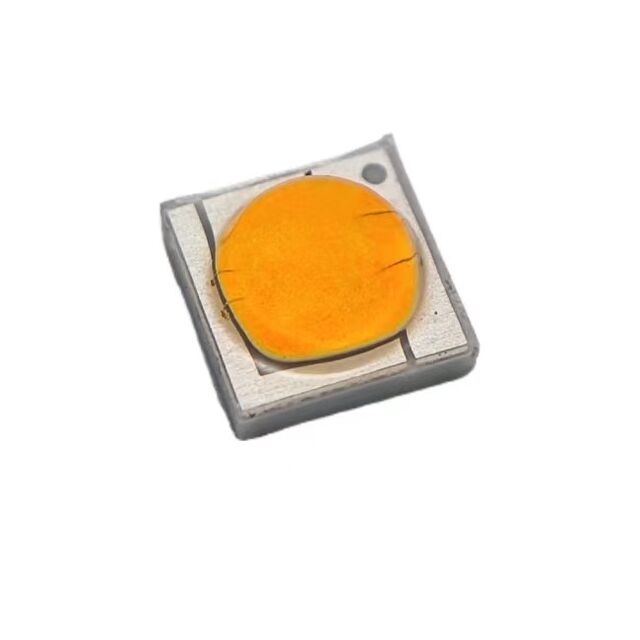

WLS-3535W300-1CD0-SA55M-R95
ActiveWeilinsen
LED SMD 2500K-3000K 280-320LM
Deep-Dive with AI
Search across all available documentation for this part.
WLS-3535W300-1CD0-SA55M-R95
ActiveWeilinsen
LED SMD 2500K-3000K 280-320LM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WLS-3535W300-1CD0-SA55M-R95 |
|---|---|
| CCT (K) | 2750 K |
| CCT (K) [Max] | 3000 K |
| CCT (K) [Min] | 2500 K |
| Color | White, Warm |
| CRI (Color Rendering Index) | 95 |
| Current - Max [Max] | 1.5 A |
| Current - Test | 1.2 A |
| Flux @ 25°C, Current - Test | 300 lm |
| Height - Seated (Max) [Max] [z] | 0.087 in |
| Height - Seated (Max) [Max] [z] | 2.2 mm |
| Lumens/Watt @ Current - Test | 81 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead Exposed Pad |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [x] | 0.138 in |
| Size / Dimension [y] | 3.5 mm |
| Size / Dimension [y] | 0.138 in |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 100 | $ 0.19 | |
| 300 | $ 0.18 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
Description
General part information
WLS-3535W300-1CD0-SA55M-R95
LED Lighting - White, Warm 2750K (2500K ~ 3000K) 3.1V 1.2A 120° 2-SMD, No Lead Exposed Pad
