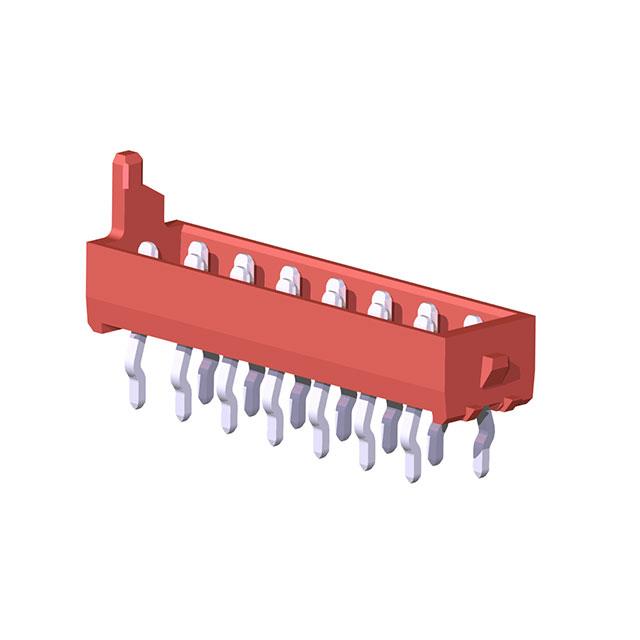

CA3010P1300

Active

Cvilux USA

1.27MM (.050) DIP TYPE MALE CONN

Search across all available documentation for this part.

Active

Cvilux USA

1.27MM (.050) DIP TYPE MALE CONN

Technical Specifications

Parameters and characteristics for this part

Specification	CA3010P1300

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Male Pin
Current Rating (Amps)	1.5 A
Fastening Type	Locking Ramp
Insulation Color	Red
Insulation Height [z]	6.78 mm
Insulation Height [z]	0.267 in
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	1.5 mm
Row Spacing - Mating [x]	0.059 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Kinked Pin, Solder
Voltage Rating	230 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 10 position 0.100" (2.54mm)
