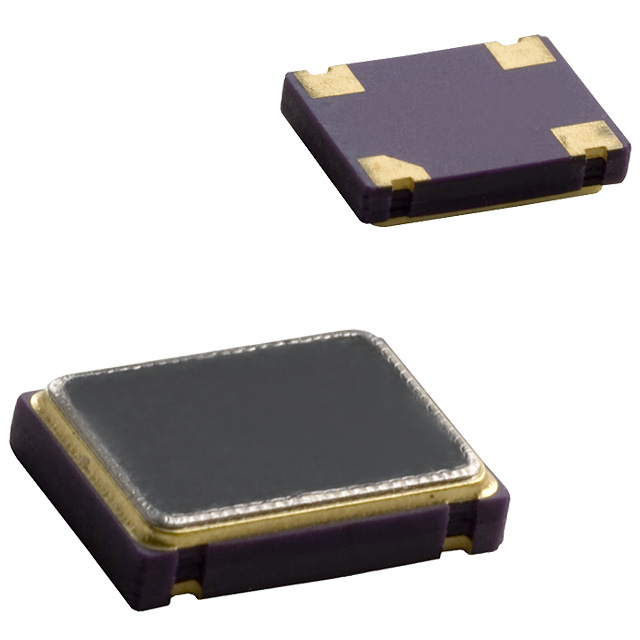

CPPLT7-HT06T
ActiveCardinal Components Inc.
OSC PROG TTL 5V 100PPM EN/DS
Deep-Dive with AI
Search across all available documentation for this part.
CPPLT7-HT06T
ActiveCardinal Components Inc.
OSC PROG TTL 5V 100PPM EN/DS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CPPLT7-HT06T |
|---|---|
| Available Frequency Range [Max] | 133 MHz |
| Available Frequency Range [Min] | 1 MHz |
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 45 mA |
| Frequency Stability | 100 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] [z] | 1.9 mm |
| Height - Seated (Max) [Max] [z] | 0.075 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Output | TTL |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Type | XO (Standard) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.13 | |
| 10 | $ 3.05 | |||
| 50 | $ 2.91 | |||
| 100 | $ 2.55 | |||
| 500 | $ 2.47 | |||
| 1000 | $ 2.11 | |||
| 2500 | $ 1.96 | |||
| 5000 | $ 1.89 | |||
| 10000 | $ 1.82 | |||
Description
General part information
CPPLT7-HT06T
XO (Standard) TTL 1 MHz ~ 133 MHz Programmable Oscillator 5V Enable/Disable 4-SMD, No Lead
Documents
Technical documentation and resources
No documents available
